16.7 ms for 401 points (100 kHz IFBW, TOSM, 200 MHz span)
R&S®ZNL4
5 kHz to 4.5 GHz
R&S®ZNL6
5 kHz to 6 GHz
R&S®ZNL14
5 kHz to 14 GHz
R&S®ZNL20
5 kHz to 20 GHz
Specification
R&S®ZNL
Why this is important
Frequency
5 kHz to 20 GHz
The measuring instrument has to cover the working frequency range of the DUT.
Dynamic range
120 dB (spec.), 130 dB (typ.)
A high dynamic range is important for measuring e.g. high-rejection filters. It also makes it possible to use a larger IF filter for faster measurement speed.
Output power
−40 dBm to 0 dBm (spec.)
A high output power is needed if you need to measure high-rejection filters (requires more dynamic range) or very long cables.
Speed
16.7 ms for 401 points (100 kHz IFBW, TOSM, 200 MHz span)
Especially in production environments, it is important to measure fast. Because time is money.
Display
•
Having an integrated monitor reduces hassle when configuring measurements.
External PC
not required
The R&S®ZNL just needs to be switched on, and users can start measuring without having to configure an external PC.
Dimensions (W × H × D)
408 mm × 186 mm × 235 mm
The size of the VNA determines how much space is left on the workbench for the measurement setup. It is usually better to have more space.
Weight
6 kg to 8 kg
If the instrument needs to be moved around, it is better to have a lighter instrument.
Scope of delivery
Printed operating manual
CD with manual
Power cable
3 year warranty (one year for battery and accessories)
Description
Type
Vector network analyzer, 5 kHz to 3 GHz
R&S®ZNL3
Vector network analyzer, 5 kHz to 4.5 GHz
R&S®ZNL4
Vector network analyzer, 5 kHz to 6 GHz
R&S®ZNL6
Vector network analyzer, 5 kHz to 14 GHz
R&S®ZNL14
Vector network analyzer, 5 kHz to 20 GHz
R&S®ZNL20
Description
Type
Spectrum analyzer function
R&S®ZNLx-B1
Time domain analysis
R&S®ZNL-K2
Distance-to-fault measurements
R&S®ZNL-K3
Independent CW source¹)
R&S®ZNL-K14
AM/FM/φM analog modulation analysis¹)
R&S®FPL1-K7
Measurements with R&S®NRP power sensors¹)
R&S®FPL1-K9
For more information about the R&S®VSE vector signal explorer software and selected options, contact your local Rohde & Schwarz sales office.

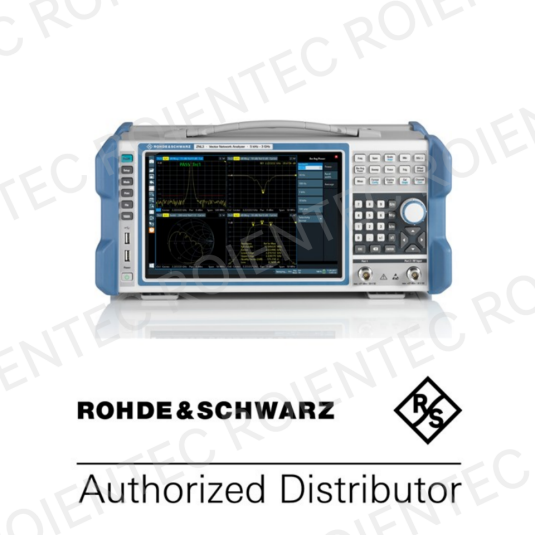

ZNL Vector Network Analyzer
Model
Frequency range
Dynamic range
Output power
IF bandwidth
Measurement speed
R&S®ZNL3
5 kHz to 3 GHz
120 dB (spec.), 130 dB (typ.)
−40 dBm to 0 dBm (spec.)
1 Hz to 500 kHz
16.7 ms for 401 points (100 kHz IFBW, TOSM, 200 MHz span)
R&S®ZNL4
5 kHz to 4.5 GHz
R&S®ZNL6
5 kHz to 6 GHz
R&S®ZNL14
5 kHz to 14 GHz
R&S®ZNL20
5 kHz to 20 GHz
Specification
R&S®ZNL
Why this is important
Frequency
5 kHz to 20 GHz
The measuring instrument has to cover the working frequency range of the DUT.
Dynamic range
120 dB (spec.), 130 dB (typ.)
A high dynamic range is important for measuring e.g. high-rejection filters. It also makes it possible to use a larger IF filter for faster measurement speed.
Output power
−40 dBm to 0 dBm (spec.)
A high output power is needed if you need to measure high-rejection filters (requires more dynamic range) or very long cables.
Speed
16.7 ms for 401 points (100 kHz IFBW, TOSM, 200 MHz span)
Especially in production environments, it is important to measure fast. Because time is money.
Display
•
Having an integrated monitor reduces hassle when configuring measurements.
External PC
not required
The R&S®ZNL just needs to be switched on, and users can start measuring without having to configure an external PC.
Dimensions (W × H × D)
408 mm × 186 mm × 235 mm
The size of the VNA determines how much space is left on the workbench for the measurement setup. It is usually better to have more space.
Weight
6 kg to 8 kg
If the instrument needs to be moved around, it is better to have a lighter instrument.
Description
Type
Vector network analyzer, 5 kHz to 3 GHz
R&S®ZNL3
Vector network analyzer, 5 kHz to 4.5 GHz
R&S®ZNL4
Vector network analyzer, 5 kHz to 6 GHz
R&S®ZNL6
Vector network analyzer, 5 kHz to 14 GHz
R&S®ZNL14
Vector network analyzer, 5 kHz to 20 GHz
R&S®ZNL20
Description
Type
Spectrum analyzer function
R&S®ZNLx-B1
Time domain analysis
R&S®ZNL-K2
Distance-to-fault measurements
R&S®ZNL-K3
Independent CW source¹)
R&S®ZNL-K14
AM/FM/φM analog modulation analysis¹)
R&S®FPL1-K7
Measurements with R&S®NRP power sensors¹)
R&S®FPL1-K9
For more information about the R&S®VSE vector signal explorer software and selected options, contact your local Rohde & Schwarz sales office.
