16.7 ms for 401 points (100 kHz IFBW, TOSM, 200 MHz span)
R&S®ZNLE4
100 kHz¹) to 4.5 GHz
R&S®ZNLE6
100 kHz¹) to 6 GHz
R&S®ZNLE14
100 kHz¹) to 14 GHz
R&S®ZNLE18
100 kHz¹) to 18 GHz²)
Specification
R&S®ZNLE

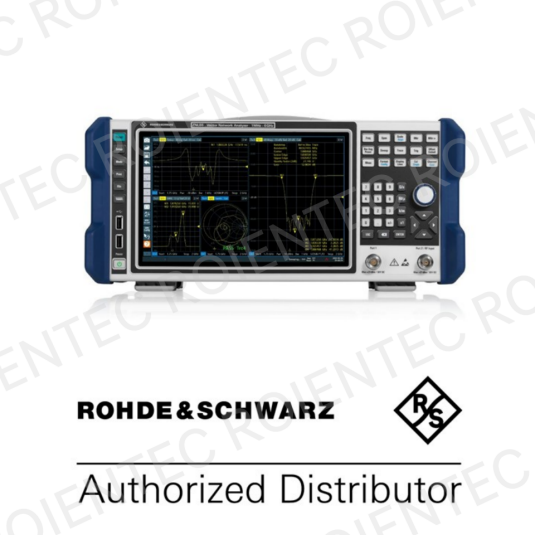

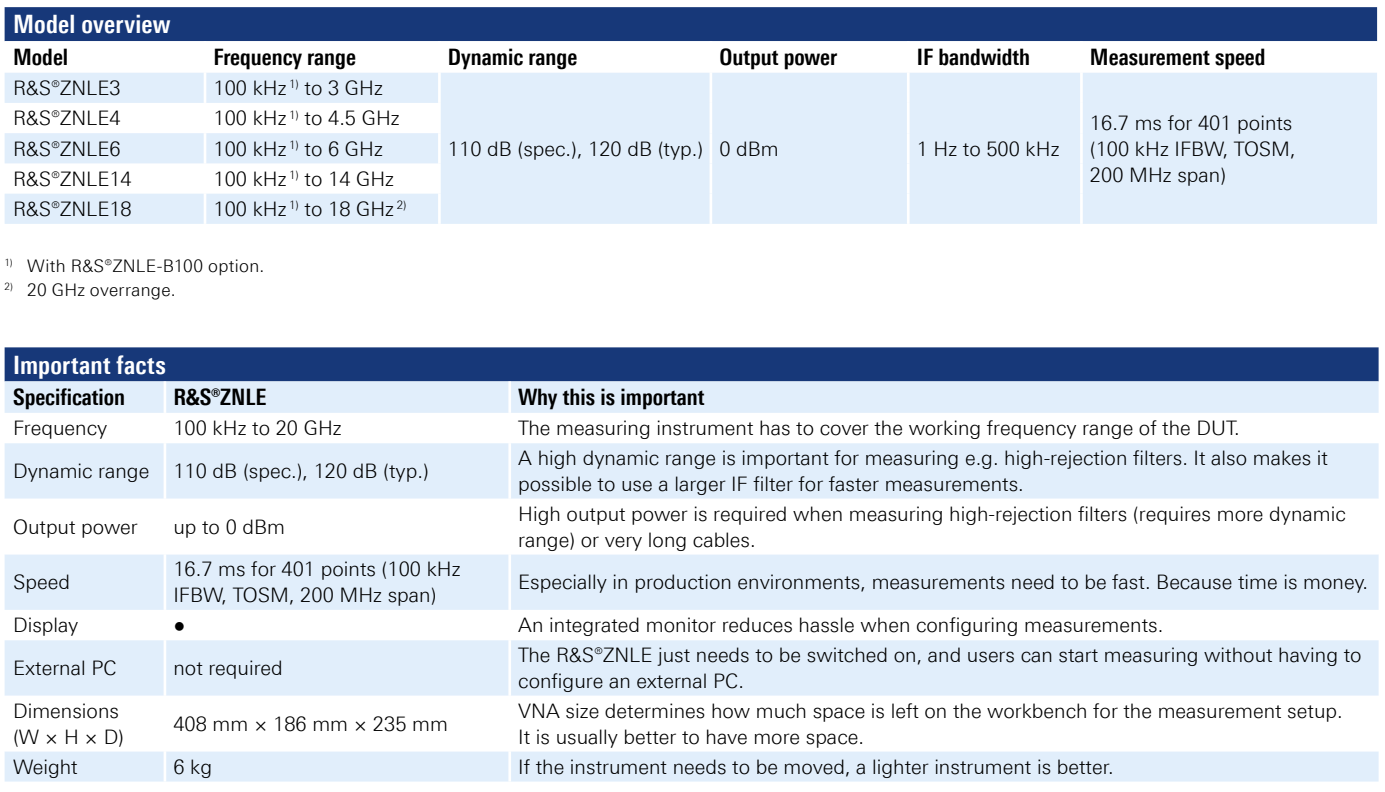

Why this is important
Frequency
100 kHz to 20 GHz
The measuring instrument has to cover the working frequency range of the DUT.
Dynamic range
110 dB (spec.), 120 dB (typ.)
A high dynamic range is important for measuring e.g. high-rejection filters. It also makes it possible to use a larger IF filter for faster measurements.
Output power
up to 0 dBm
High output power is required when measuring high-rejection filters (requires more dynamic range) or very long cables.
Speed
16.7 ms for 401 points (100 kHz IFBW, TOSM, 200 MHz span)
Especially in production environments, measurements need to be fast. Because time is money.
Display
•
An integrated monitor reduces hassle when configuring measurements.
External PC
not required
The R&S®ZNLE just needs to be switched on, and users can start measuring without having to configure an external PC.
Dimensions (W × H × D)
408 mm × 186 mm × 235 mm
VNA size determines how much space is left on the workbench for the measurement setup. It is usually better to have more space.
Weight
6 kg
If the instrument needs to be moved, a lighter instrument is better.

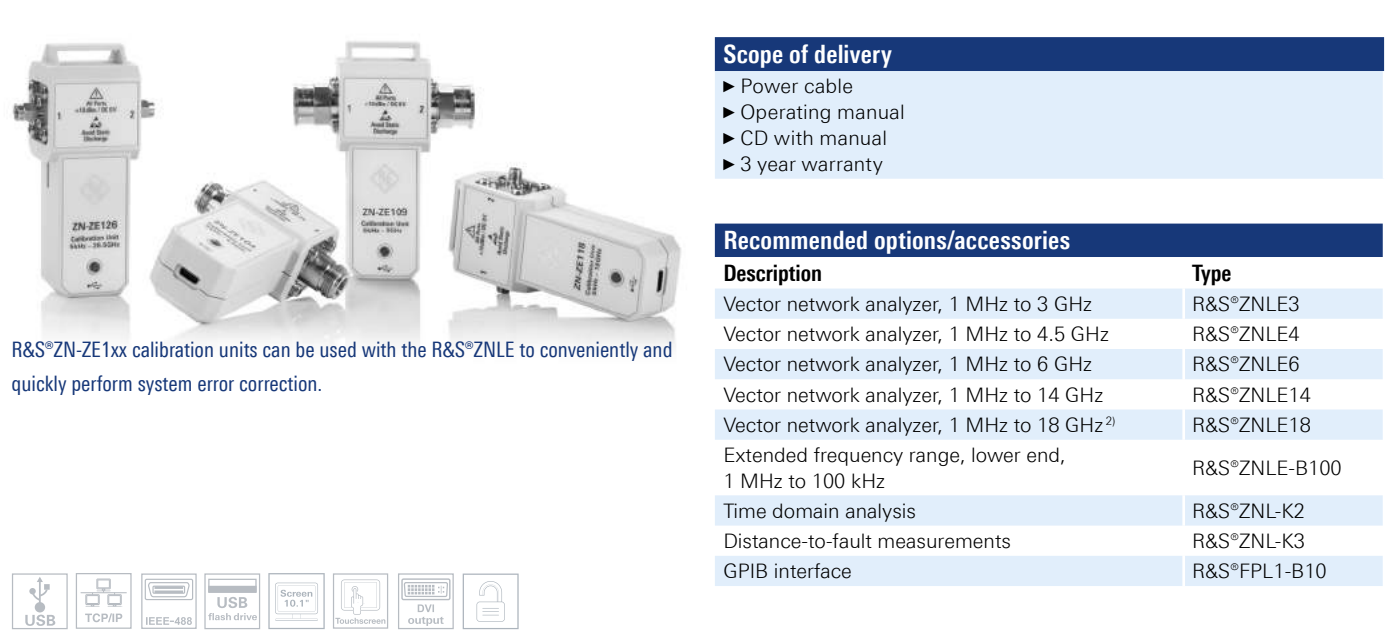

Scope of delivery
Power cable
Operating manual
CD with manual
3 year warranty
Description
Type
Vector network analyzer, 1 MHz to 3 GHz
R&S®ZNLE3
Vector network analyzer, 1 MHz to 4.5 GHz
R&S®ZNLE4
Vector network analyzer, 1 MHz to 6 GHz
R&S®ZNLE6
Vector network analyzer, 1 MHz to 14 GHz
R&S®ZNLE14
Vector network analyzer, 1 MHz to 18 GHz²)
R&S®ZNLE18
Extended frequency range, lower end, 1 MHz to 100 kHz

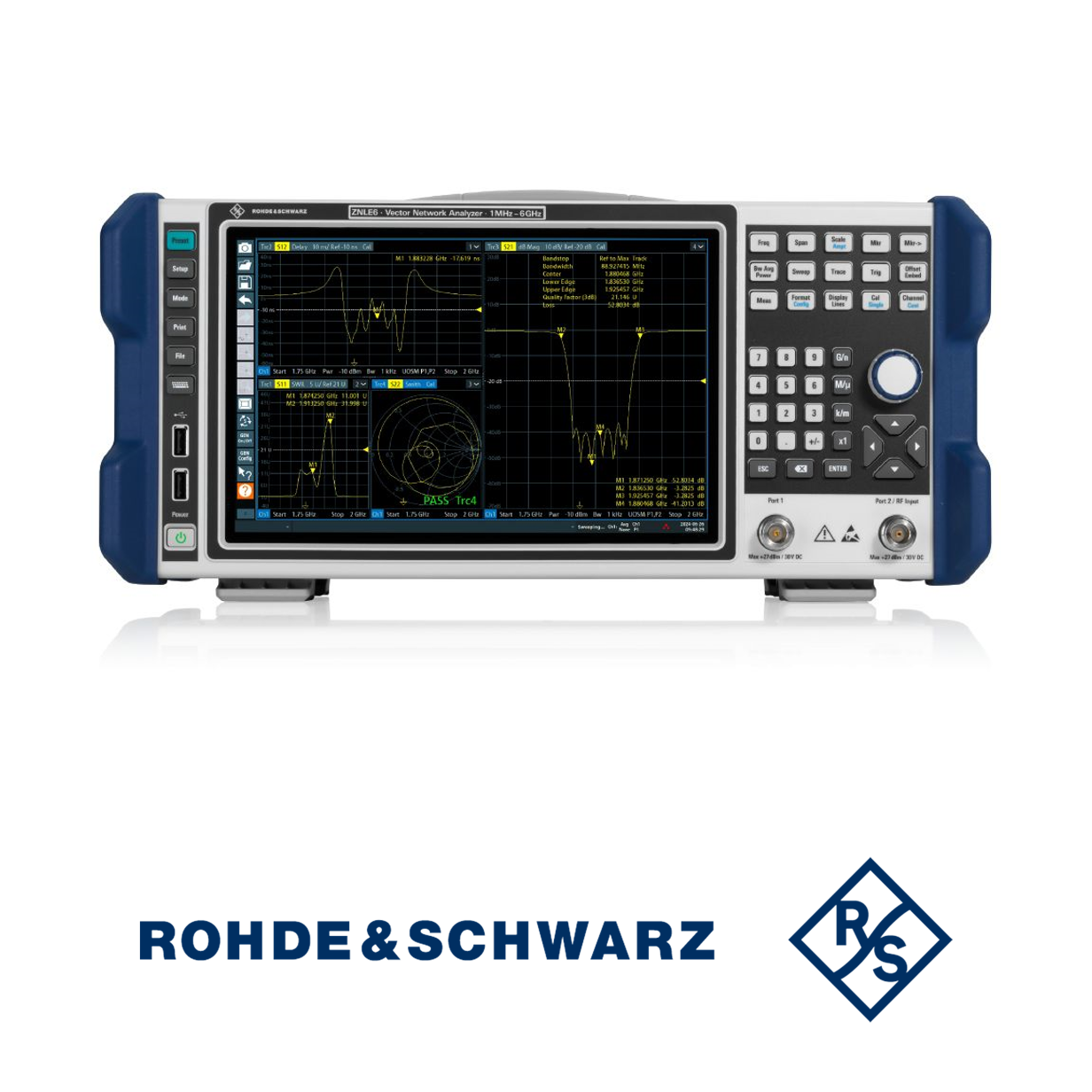

ZNLE Vector Network Analyzer
Model
Frequency range
Dynamic range
Output power
IF bandwidth
Measurement speed
R&S®ZNLE3
100 kHz¹) to 3 GHz
110 dB (spec.), 120 dB (typ.)
0 dBm
1 Hz to 500 kHz
16.7 ms for 401 points (100 kHz IFBW, TOSM, 200 MHz span)
R&S®ZNLE4
100 kHz¹) to 4.5 GHz
R&S®ZNLE6
100 kHz¹) to 6 GHz
R&S®ZNLE14
100 kHz¹) to 14 GHz
R&S®ZNLE18
100 kHz¹) to 18 GHz²)
Specification
R&S®ZNLE
Why this is important
Frequency
100 kHz to 20 GHz
The measuring instrument has to cover the working frequency range of the DUT.
Dynamic range
110 dB (spec.), 120 dB (typ.)
A high dynamic range is important for measuring e.g. high-rejection filters. It also makes it possible to use a larger IF filter for faster measurements.
Output power
up to 0 dBm
High output power is required when measuring high-rejection filters (requires more dynamic range) or very long cables.
Speed
16.7 ms for 401 points (100 kHz IFBW, TOSM, 200 MHz span)
Especially in production environments, measurements need to be fast. Because time is money.
Display
•
An integrated monitor reduces hassle when configuring measurements.
External PC
not required
The R&S®ZNLE just needs to be switched on, and users can start measuring without having to configure an external PC.
Dimensions (W × H × D)
408 mm × 186 mm × 235 mm
VNA size determines how much space is left on the workbench for the measurement setup. It is usually better to have more space.
Weight
6 kg
If the instrument needs to be moved, a lighter instrument is better.
Description
Type
Vector network analyzer, 1 MHz to 3 GHz
R&S®ZNLE3
Vector network analyzer, 1 MHz to 4.5 GHz
R&S®ZNLE4
Vector network analyzer, 1 MHz to 6 GHz
R&S®ZNLE6
Vector network analyzer, 1 MHz to 14 GHz
R&S®ZNLE14
Vector network analyzer, 1 MHz to 18 GHz²)
R&S®ZNLE18
Extended frequency range, lower end, 1 MHz to 100 kHz
R&S®ZNLE-B100
Time domain analysis
R&S®ZNL-K2
Distance-to-fault measurements
R&S®ZNL-K3
GPIB interface
R&S®FPL1-B10
