-174 dBm at 2 GHz with preamplifier and Noise Floor Extension turned on
Third-order Intermodulation (TOI) Distortion
+23 dBm at 2 GHz
Phase Noise (10 kHz offset)
-136 dBc/Hz at 1 GHz; -126 dBc/Hz at 10 GHz
Amplitude Accuracy
±0.16 dB
Spurious-free Dynamic Range (SFDR)
-78 dBc nominal over 510 MHz bandwidth
Real-time Bandwidth
N9040B: Up to 510 MHzN9041B: Up to 255 MHzN9042B: Up to 2 GHz
Probability of Intercept (POI)
N9040B/41B: Minimal signal duration of 3.51 μs for 100% POI and full amplitude accuracyN9042B: Minimal signal duration of 227 ns for 100% POI and full amplitude accuracy

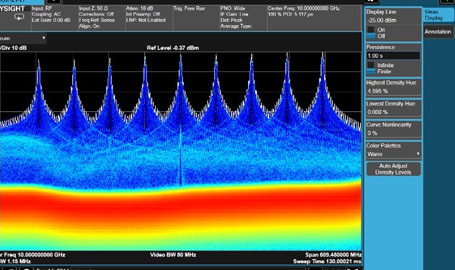

Real-time spectrum analysis bandwidth up to 2 GHz.

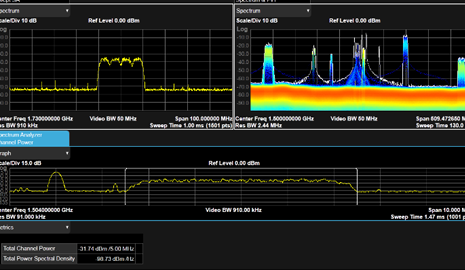

Gain maximum insight with the ability to view multiple screens simultaneously on the UXA’s 14.1-inch multi-touch display.

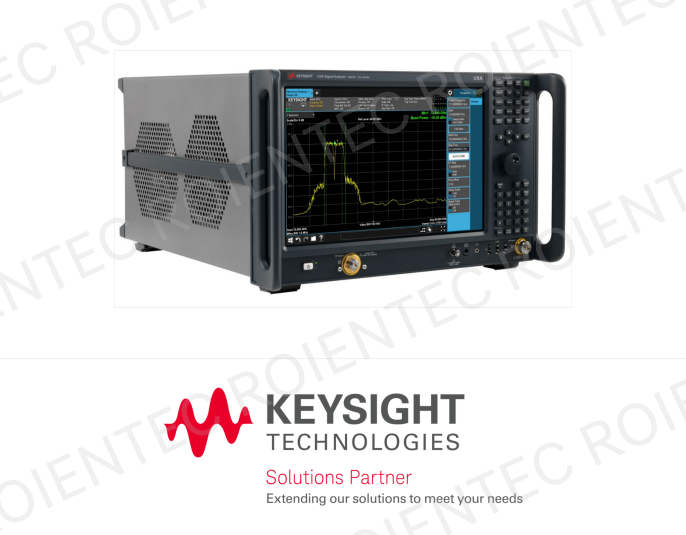

N9040B,N9041B,N9042B
Frequency Range
Minimum
Maximum
Frequency Range
2 Hz
N9040B: 8.4, 13.6, 26.5, 44, or 50 GHzN9041B: 90 or 110 GHz (Up to 1.1 THz with external mixing)N9042B: 26.5, 44, 50 GHz
Analysis Bandwidth
N9040B/41B: 25 MHz (standard), 40, 255, 510 MHz, and 1 GHzN9042B: 1, 1.5, 2, 4 GHz
Displayed Average Noise Level (DANL)
-174 dBm at 2 GHz with preamplifier and Noise Floor Extension turned on
Third-order Intermodulation (TOI) Distortion
+23 dBm at 2 GHz
Phase Noise (10 kHz offset)
-136 dBc/Hz at 1 GHz; -126 dBc/Hz at 10 GHz
Amplitude Accuracy
±0.16 dB
Spurious-free Dynamic Range (SFDR)
-78 dBc nominal over 510 MHz bandwidth
Real-time Bandwidth
N9040B: Up to 510 MHzN9041B: Up to 255 MHzN9042B: Up to 2 GHz
Probability of Intercept (POI)
N9040B/41B: Minimal signal duration of 3.51 μs for 100% POI and full amplitude accuracyN9042B: Minimal signal duration of 227 ns for 100% POI and full amplitude accuracy
Real-time spectrum analysis bandwidth up to 2 GHz.
Gain maximum insight with the ability to view multiple screens simultaneously on the UXA’s 14.1-inch multi-touch display.
