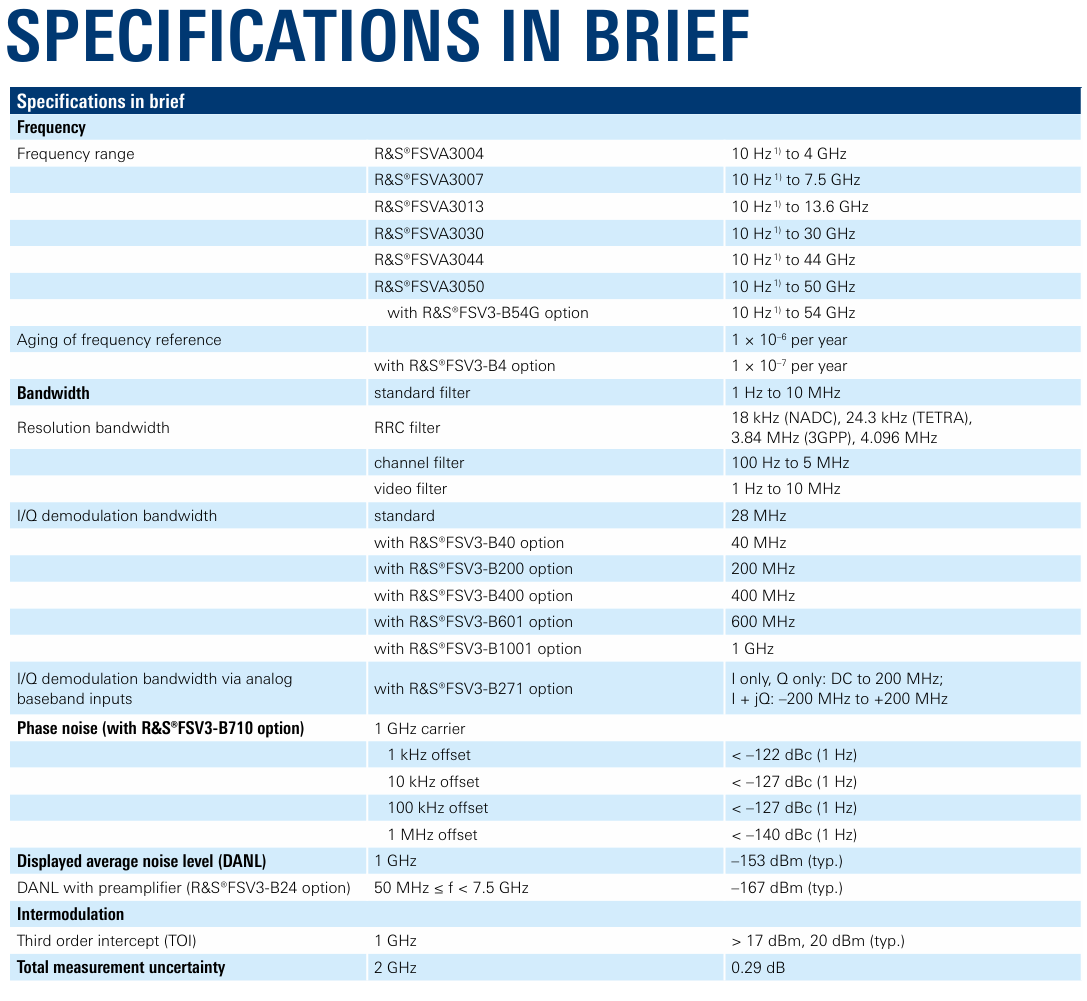

R&SFSVA3000

Frequency

Frequency range

R&S®FSVA3004

10 Hz¹) to 4 GHz

R&S®FSVA3007

10 Hz¹) to 7.5 GHz

R&S®FSVA3013

10 Hz¹) to 13.6 GHz

R&S®FSVA3030

10 Hz¹) to 30 GHz

R&S®FSVA3044

10 Hz¹) to 44 GHz

R&S®FSVA3050

10 Hz¹) to 50 GHz

with R&S®FSV3-B54G option

10 Hz¹) to 54 GHz

Aging of frequency reference

1 × 10⁻⁶ per year

with R&S®FSV3-B4 option

1 × 10⁻⁷ per year

Bandwidth

standard filter

1 Hz to 10 MHz

Resolution bandwidth

RRC filter

18 kHz (NADC), 24.3 kHz (TETRA), 3.84 MHz (3GPP), 4.096 MHz

channel filter

100 Hz to 5 MHz

video filter

1 Hz to 10 MHz

I/Q demodulation bandwidth

standard

28 MHz

with R&S®FSV3-B40 option

40 MHz

with R&S®FSV3-B200 option

200 MHz

with R&S®FSV3-B400 option

400 MHz

with R&S®FSV3-B601 option

600 MHz

with R&S®FSV3-B1001 option

1 GHz

I/Q demodulation bandwidth via analog baseband inputs

with R&S®FSV3-B271 option

I only, Q only: DC to 200 MHz;I + jQ: −200 MHz to +200 MHz

Phase noise (with R&S®FSV3-B710 option)

1 GHz carrier

1 kHz offset

< −122 dBc (1 Hz)

10 kHz offset

< −127 dBc (1 Hz)

100 kHz offset

< −127 dBc (1 Hz)

1 MHz offset

< −140 dBc (1 Hz)

Displayed average noise level (DANL)

1 GHz

−153 dBm (typ.)

DANL with preamplifier (R&S®FSV3-B24 option)

50 MHz ≤ f < 7.5 GHz

−167 dBm (typ.)

Intermodulation

Third order intercept (TOI)

1 GHz

> 17 dBm, 20 dBm (typ.)

Total measurement uncertainty

2 GHz

0.29 dB
