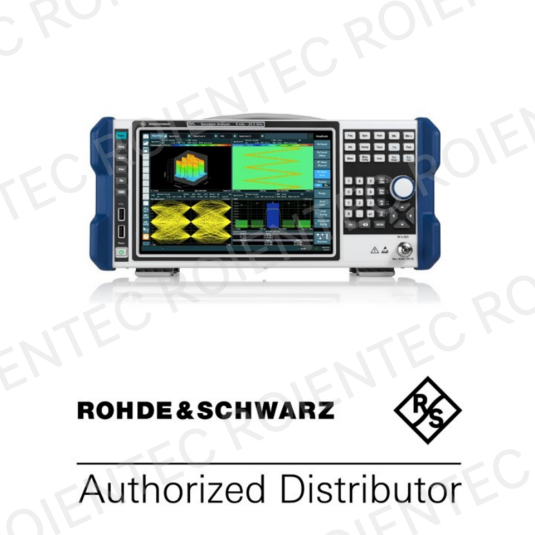

R&SFPL1000

R&S®FPL1003

5 kHz to 3 GHz

−166 dBm (typ.)

−108 dBc (1 Hz) (typ.)

+20 dBm (typ.)

< −70 dBc (typ.)

optional

R&S®FPL1007

5 kHz to 7.5 GHz

R&S®FPL1014

5 kHz to 14 GHz

R&S®FPL1026

5 kHz to 26.5 GHz

Analysis bandwidth

► 10 MHz standard► 40 MHz optional

Digital demodulation possible within the analysis bandwidth.

Spurious

< −70 dBc

Unambiguous detection of small signals.

Phase noise (f = 1 GHz, 10 kHz offset)

< −105 dBc (1 Hz)

Analysis close to the carrier or of narrowband signals.

TOI at 1 GHz

> 17 dBm

Higher dynamic range to detect small signals in the presence of strong ones.

Dimensions (W × H × D)

408 mm × 186 mm × 235 mm

Smaller dimensions leave more space on the workbench and make it easier to integrate into a rack.

Weight

6 kg

Low weight for enhanced portability.

Battery operation

optional

Full portability.

OCXO frequency reference

R&S®FPL1-B4

Additional interfaces

R&S®FPL1-B5

Internal generator up to 3 GHz/7.5 GHz for R&S®FPL1003/R&S®FPL1007 (factory fitted)

R&S®FPL1-B9

IEEE-488 (GPIB) interface

R&S®FPL1-B10

YIG preselector bypass

R&S®FPL1-B11

Second hard disk (SSD)

R&S®FPL1-B19

RF preamplifier up to 7.5/14/26.5 GHz

R&S®FPL1-B22

1 dB steps for electronic attenuator

R&S®FPL1-B25

DC power supply, 12 V/24 V

R&S®FPL1-B30

Internal lithium-ion battery with charging unit

R&S®FPL1-B31

40 MHz analysis bandwidth

R&S®FPL1-B40

AM/FM/φM measurement demodulator

R&S®FPL1-K7

Power sensor measurement with R&S®NRP-Zxx power sensors

R&S®FPL1-K9

Noise figure measurement application

R&S®FPL1-K30

Phase noise measurement application

R&S®FPL1-K40

EMI measurement application

R&S®FPL1-K54

Vector signal analysis

R&S®FPL1-K70

Multi-modulation analysis¹)

R&S®FPL1-K70M

BER measurements with PRBS data¹)

R&S®FPL1-K70P
