Spectrum Analyzer

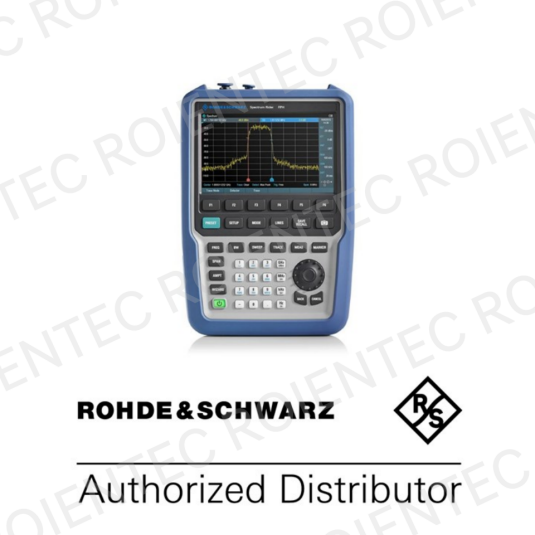

FPH Handheld Spectrum Analyzer
(Spectrum Rider)
Model overview
Model
Frequency range
Preamplifier
Resolution bandwidth
Phase noise (f = 500 MHz, 1 MHz offset)
.02+ R&S®FPH-B3+ R&S®FPH-B4
5 kHz to 2 GHzup to 3 GHzup to 4 GHz
optional
1 Hz to 3 MHz
−125 dBc (1 Hz)
.06+ R&S®FPH-B8
5 kHz to 6 GHzup to 8 GHz
.13/.23+ R&S®FPH-B20
5 kHz to 13.6 GHzup to 20 GHz
► model .13: −125 dBc (1 Hz)► model .23: −125 dBc (1 Hz)
.26/.36R&S®FPH-B31
5 kHz to 26.5 GHzup to 31 GHz
► model .26: −125 dBc (1 Hz)► model .36: −125 dBc (1 Hz)
.44/.54
5 kHz to 44 GHz
−120 dBc (1 Hz)
Important facts
Specification
R&S®Spectrum Rider FPH
Why this is important
Software upgradeable frequency ranges
●
Investment protection. Allows users to buy only what they need, when they need it.
Touchscreen (capacitive)
Allows faster measurement setup and configuration. Ability to pinch and zoom to set span.
Backlit keypad
Ability to use the equipment in all lighting conditions.
Fanless design
Quiet operation, sealed to protect against dust and water.
Recommended options/accessories
Description
Type
Spectrum analyzer 100 Hz frequency extension, from 5 kHz down to 100 Hz¹)
R&S®FPH-B29
Analog modulation analysis AM/FM
R&S®FPH-K7
Power sensor support
R&S®FPH-K9
Channel power meter
R&S®FPH-K19
Pulse measurements with power sensor
R&S®FPH-K29
Interference analysis
R&S®FPH-K15
Signal strength mapping
R&S®FPH-K16
Receiver mode
R&S®FPH-K43
EMF measurement application
R&S®FPH-K105
