Allows modulation measurements on relevant wireless standards.
VNA support
full two-port
Allows for cable loss and antenna testing and characterization, as well as distance to fault measurements. Two-port capability increases accuracy of transmission measurements.
Wizard support for common measurement functions
●
Increases repeatable field test patterns and reduces user error.
Entry level model
3.6 GHz
Determines lowest cost entry point into the family.
Preamplifier
●
Increases sensitivity for low signal level measurements.

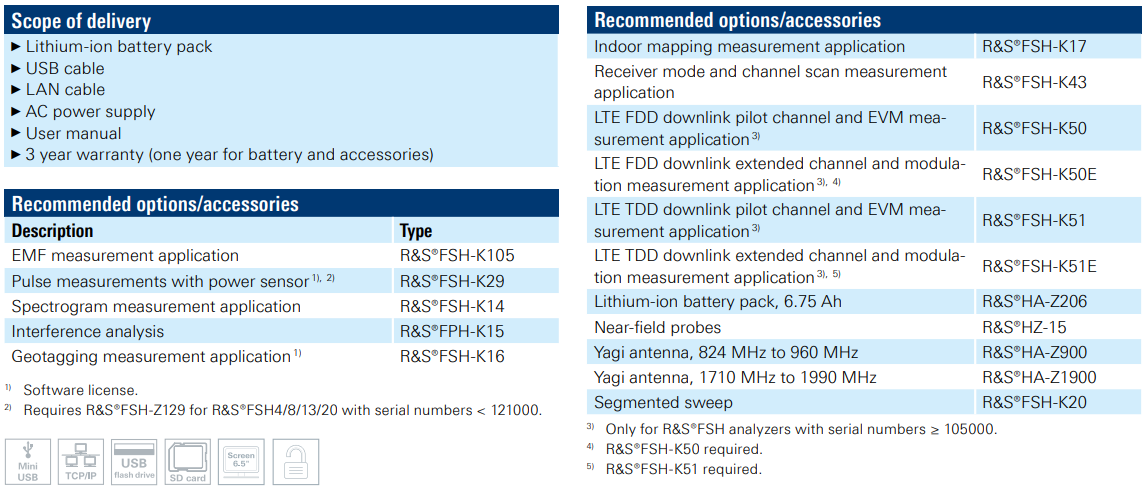

Scope of delivery
Lithium-ion battery pack
USB cable
LAN cable
AC power supply
User manual
3 year warranty (one year for battery and accessories)
Description
Type
EMF measurement application
R&S®FSH-K105
Pulse measurements with power sensor¹),²)
R&S®FSH-K29
Spectrogram measurement application
R&S®FSH-K14
Interference analysis
R&S®FPH-K15
Geotagging measurement application¹)
R&S®FSH-K16
Recommended options/accessories
Description
Type
Indoor mapping measurement application
R&S®FSH-K17
Receiver mode and channel scan measurement application
R&S®FSH-K43
LTE FDD downlink pilot channel and EVM measurement application³)
R&S®FSH-K50
LTE FDD downlink extended channel and modulation measurement application³),⁴)
R&S®FSH-K50E
LTE TDD downlink pilot channel and EVM measurement application³)
R&S®FSH-K51
LTE TDD downlink extended channel and modulation measurement application³),⁵)
R&S®FSH-K51E
Lithium-ion battery pack, 6.75 Ah
R&S®HA-Z206
Near-field probes
R&S®HZ-15
Yagi antenna, 824 MHz to 960 MHz
R&S®HA-Z900
Yagi antenna, 1710 MHz to 1990 MHz
R&S®HA-Z1900
Segmented sweep
R&S®FSH-K20
Description
Type
Indoor mapping measurement application
R&S®FSH-K17
Receiver mode and channel scan measurement application
R&S®FSH-K43
LTE FDD downlink pilot channel and EVM measurement application³)
R&S®FSH-K50
LTE FDD downlink extended channel and modulation measurement application³),⁴)
R&S®FSH-K50E
LTE TDD downlink pilot channel and EVM measurement application³)
R&S®FSH-K51
LTE TDD downlink extended channel and modulation measurement application³),⁵)
R&S®FSH-K51E
Lithium-ion battery pack, 6.75 Ah
R&S®HA-Z206
Near-field probes
R&S®HZ-15
Yagi antenna, 824 MHz to 960 MHz
R&S®HA-Z900
Yagi antenna, 1710 MHz to 1990 MHz
R&S®HA-Z1900
Segmented sweep
R&S®FSH-K20
1) Software license.
2) Requires R&S®FSH-Z129 for R&S®FSH4/8/13/20 with serial numbers < 121000.

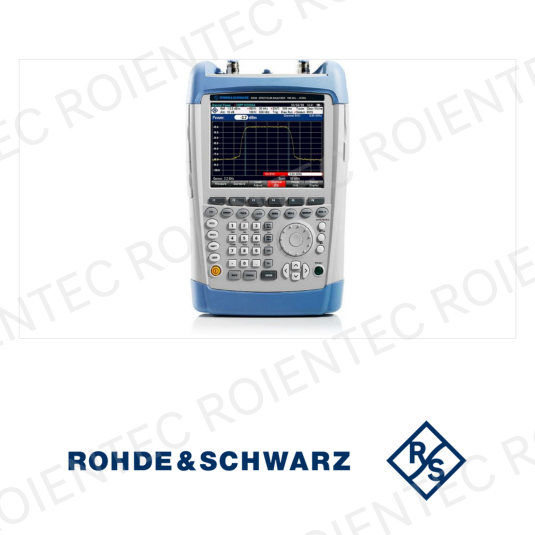

FSH Handheld Spectrum Analyzer

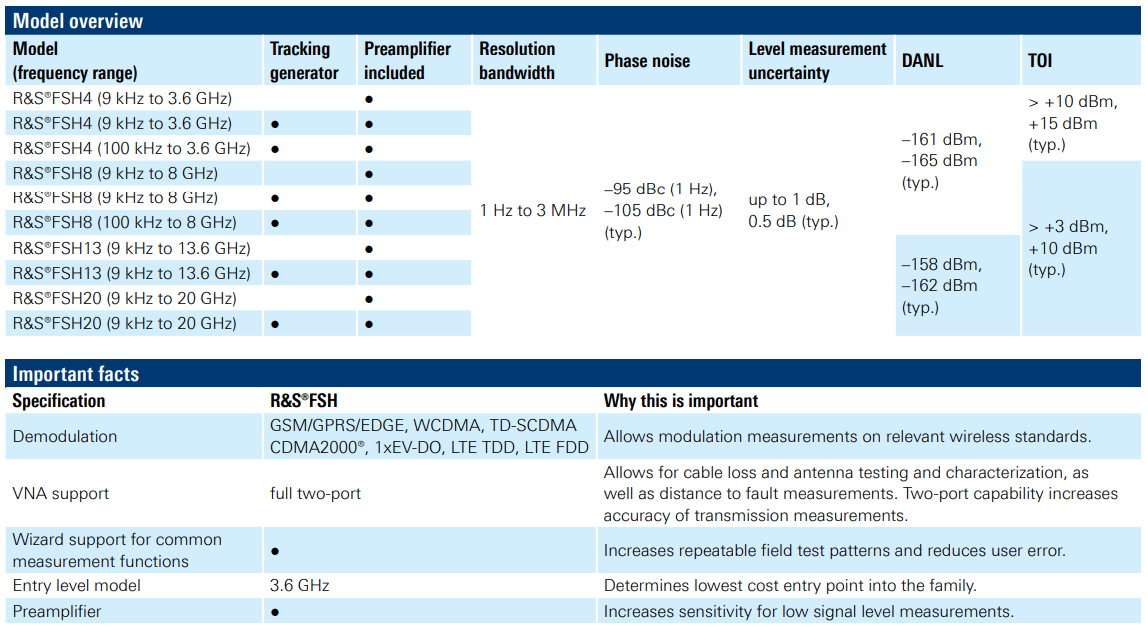

Model Overview
Model (frequency range)
Tracking generator
Preamplifier included
Resolution bandwidth
Phase noise
Level measurement uncertainty
DANL
TOI
R&S®FSH4 (9 kHz to 3.6 GHz)
●
1 Hz to 3 MHz
−95 dBc (1 Hz),−105 dBc (1 Hz) (typ.)
up to 1 dB,0.5 dB (typ.)
−161 dBm,−165 dBm (typ.)
> +10 dBm,+15 dBm (typ.)
R&S®FSH4 (9 kHz to 3.6 GHz)
●
●
R&S®FSH4 (100 kHz to 3.6 GHz)
●
●
R&S®FSH8 (9 kHz to 8 GHz)
●
> +3 dBm,+10 dBm (typ.)
R&S®FSH8 (9 kHz to 8 GHz)
●
●
R&S®FSH8 (100 kHz to 8 GHz)
●
●
R&S®FSH13 (9 kHz to 13.6 GHz)
●
−158 dBm,−162 dBm (typ.)
R&S®FSH13 (9 kHz to 13.6 GHz)
●
●
R&S®FSH20 (9 kHz to 20 GHz)
●
R&S®FSH20 (9 kHz to 20 GHz)
●
●
Important Facts
Specification
R&S®FSH
Why this is important
Demodulation
GSM/GPRS/EDGE, WCDMA, TD-SCDMACDMA2000®, 1xEV-DO, LTE TDD, LTE FDD
Allows modulation measurements on relevant wireless standards.
VNA support
full two-port
Allows for cable loss and antenna testing and characterization, as well as distance to fault measurements. Two-port capability increases accuracy of transmission measurements.
Wizard support for common measurement functions
●
Increases repeatable field test patterns and reduces user error.
Entry level model
3.6 GHz
Determines lowest cost entry point into the family.
Preamplifier
●
Increases sensitivity for low signal level measurements.
Description
Type
EMF measurement application
R&S®FSH-K105
Pulse measurements with power sensor¹),²)
R&S®FSH-K29
Spectrogram measurement application
R&S®FSH-K14
Interference analysis
R&S®FPH-K15
Geotagging measurement application¹)
R&S®FSH-K16
Recommended options/accessories
Description
Type
Indoor mapping measurement application
R&S®FSH-K17
Receiver mode and channel scan measurement application
R&S®FSH-K43
LTE FDD downlink pilot channel and EVM measurement application³)
R&S®FSH-K50
LTE FDD downlink extended channel and modulation measurement application³),⁴)
R&S®FSH-K50E
LTE TDD downlink pilot channel and EVM measurement application³)
R&S®FSH-K51
LTE TDD downlink extended channel and modulation measurement application³),⁵)
R&S®FSH-K51E
Lithium-ion battery pack, 6.75 Ah
R&S®HA-Z206
Near-field probes
R&S®HZ-15
Yagi antenna, 824 MHz to 960 MHz
R&S®HA-Z900
Yagi antenna, 1710 MHz to 1990 MHz
R&S®HA-Z1900
Segmented sweep
R&S®FSH-K20
Description
Type
Indoor mapping measurement application
R&S®FSH-K17
Receiver mode and channel scan measurement application
R&S®FSH-K43
LTE FDD downlink pilot channel and EVM measurement application³)
R&S®FSH-K50
LTE FDD downlink extended channel and modulation measurement application³),⁴)
R&S®FSH-K50E
LTE TDD downlink pilot channel and EVM measurement application³)
R&S®FSH-K51
LTE TDD downlink extended channel and modulation measurement application³),⁵)
R&S®FSH-K51E
Lithium-ion battery pack, 6.75 Ah
R&S®HA-Z206
Near-field probes
R&S®HZ-15
Yagi antenna, 824 MHz to 960 MHz
R&S®HA-Z900
Yagi antenna, 1710 MHz to 1990 MHz
R&S®HA-Z1900
Segmented sweep
R&S®FSH-K20
1) Software license.
2) Requires R&S®FSH-Z129 for R&S®FSH4/8/13/20 with serial numbers < 121000.
