R&SHMP2000

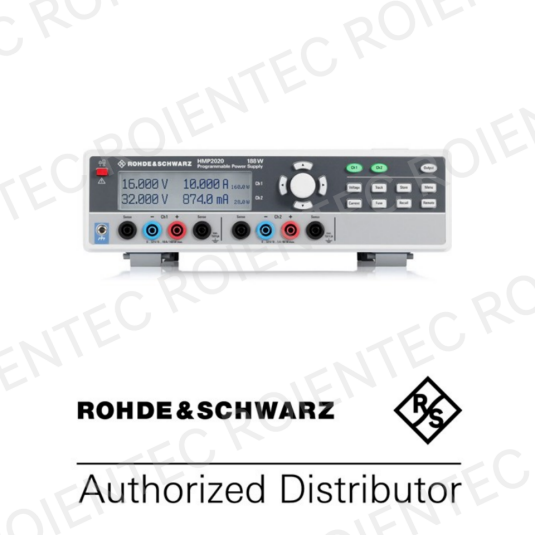

R&S®HMP2020

2

0 V to 32 V

CH1: 0 A to 10 ACH2: 0 A to 5 A

188 W

CH1: 160 WCH2: 80 W

64 V

15 A

R&S®HMP2030

3

0 V to 32 V

0 A to 5 A

188 W

80 W

96 V

15 A

R&S®HMP4030

3

0 V to 32 V

0 A to 10 A

384 W

160 W

96 V

30 A

R&S®HMP4040

4

0 V to 32 V

0 A to 10 A

384 W

160 W

128 V

40 A

Number of output channels

2/3; 3/4

More channels in a compact package provide more flexibility for any specific application, especially with equal channels.

Total output power

max. 188 W; max. 384 W

With more output power, DUTs with more power consumption can be driven.

Maximum output power per channel

80 W (R&S®HMP2020: 160 W); 160 W

Same output power on all channels provides more flexible configuration in specific applications.

Maximum output voltage

32 V (all channels); 32 V (all channels)

With the same output voltage on each channel, there are no limitations for using channels in different applications.

Maximum current per channel

5 A (R&S®HMP2020: 10 A); 10 A

With the same output current on each channel, there are no limitations for using channels in different applications.

Sense function

•, for each channel

Sense function provides more accurate voltage at the DUT especially when high current is needed.

Dimensions (W × H × D)

285 mm × 95 mm × 405 mm;285 mm × 136 mm × 405 mm

The size of the instrument determines how much space is left on the workbench for the measurement setup.

Weight

7.8 kg/8.0 kg;12.4 kg/12.8 kg

If the instrument has to be used in different places, it is better to have a lighter instrument.

Quick start guide

Power cord

3 year warranty

Interfaces and system components

Dual interfaces (RS-232/USB)

R&S®HO720, R&S®HO732

IEEE-488 (GPIB) interface

R&S®HO740

19" rack adapter, 2 HU, for R&S®HMP2020/HMP2030

R&S®HZ42

19" rack adapter, 4 HU, for R&S®HMP4030/HMP4040

R&S®HZP91
