R&S®ZPH one-port model (model .02) | 2 MHz to 3 GHz | – | 0.3 ms/point | 101 to 2501 | DTF, return loss, VSWR, one-port cable loss, Smith chart, phase | power meter, power measurement with power sensor, pulse measurement |
R&S®ZPH two-port model (model .12) | ▶ CAT mode: 2 MHz to 3 GHz ▶ spectrum mode: 5 kHz to 3 GHz | up to 4 GHz (R&S®ZPH-B4 option) | 0.3 ms/point | 101 to 2501 | DTF, return loss, VSWR, one-port cable loss, Smith chart, phase, S21 | power meter, power measurement with power sensor, pulse measurement, spectrum analysis, interference analysis, AM/FM/ASK/FSK modulation analysis |

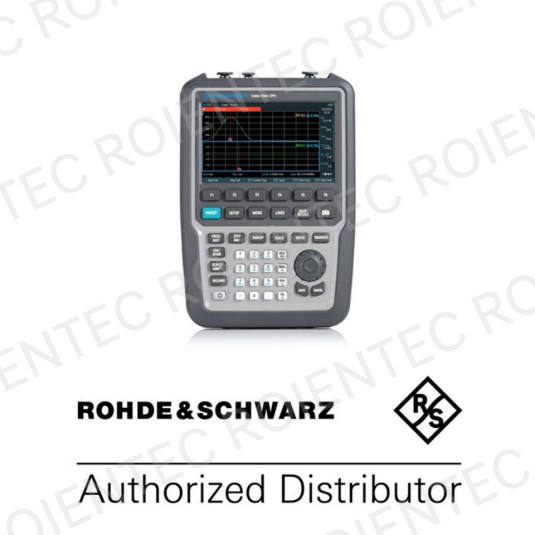

ZPH Cable and Antenna Analyzer
Model overview
Model
Frequency range
Frequency extension
Measurement speed
Data points
Measurement mode (standard)
Measurement mode (optional)
R&S®ZPH one-port model (model .02)
2 MHz to 3 GHz
–
0.3 ms/point
101 to 2501
DTF, return loss, VSWR, one-port cable loss, Smith chart, phase
power meter, power measurement with power sensor, pulse measurement
R&S®ZPH two-port model (model .12)
▶ CAT mode: 2 MHz to 3 GHz
▶ spectrum mode: 5 kHz to 3 GHz
up to 4 GHz (R&S®ZPH-B4 option)
0.3 ms/point
101 to 2501
DTF, return loss, VSWR, one-port cable loss, Smith chart, phase, S21
power meter, power measurement with power sensor, pulse measurement, spectrum analysis, interference analysis, AM/FM/ASK/FSK modulation analysis
Important facts
Specification
R&S®ZPH
Why this is important
Measurement speed
0.3 ms/point
Total overall test time is an important parameter impacted greatly by measurement speed. Faster measurement time per point increases overall throughput. This is especially important if hand-tuning of devices (antennas, resonators) is required.
Battery operation time
up to 6.5 h/9 h (mode dependent)
The advantages of having a long-lasting battery are obvious – no need to bring an extra battery with additional weight when climbing up a mast or tower, no dead batteries during measurement.
Automatic calibration unit
●¹
With little or no VNA experience, users can make a valid calibration and accurate measurements. An auto-cal unit also eliminates the need to deal with individual open, short, match and through calibration standards. Auto-cal based calibrations can be performed in the field or the lab to ensure consistent and reliable results.
Capacitive touchscreen with gesture support
●
Intuitive (smartphone-like) operation. Allows faster measurement setup and configuration. Ability to pinch and zoom to set span.
Scope of delivery
Quick start guide
Power cord
3 year warranty
Recommended options/accessories
Description
Type
Frequency upgrade (3 GHz to 4 GHz)
R&S®ZPH-B4
Spectrum analyzer preamplifier (requires R&S®ZPH-K1)
R&S®ZPH-B22
Calibration unit, one-port, 2 MHz to 4 GHz
R&S®ZN-Z103
Combined open/short/50 Ω load calibration standard, for calibrating VSWR and DTF measurements, DC to 3.6 GHz
R&S®FSH-Z29
Soft carrying bag
R&S®HA-Z220
Rainproof carrying holster
R&S®HA-Z232
