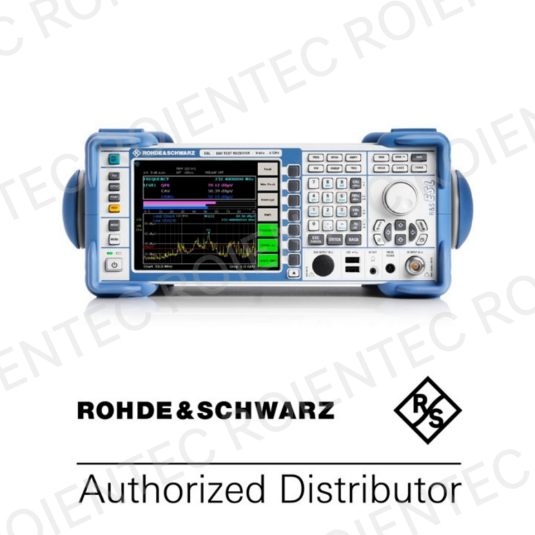

ESL EMI Test Receiver
Model overview
Model (frequency range)
Measurement range
Amplitude accuracy
DANL with preamplifier
Resolution bandwidths
Tracking generator
R&S®ESL3 (9 kHz to 3 GHz)
−70 dBm to +23 dBm
0.5 dB
< −152 dBm (1 Hz)
10 Hz to 10 MHz (−3 dB), 200 Hz, 9 kHz, 120 kHz (−6 dB), 1 MHz (impulse)
not available
same as above
integrated
R&S®ESL6 (9 kHz to 6 GHz)
Scope of delivery
Quick start guide
Power cord
3 year warranty
Recommended options/accessories
Description
Type
OCXO reference frequency
R&S®FSL-B4
Additional interfaces (video out, IF out, noise source control, AUX port, R&S®NRP-Zxx power sensor)
R&S®FSL-B5
Gated sweep
R&S®FSL-B8
AM/FM/φM measurement demodulator
R&S®FSL-K7
Power sensor support (requires R&S®FSL-B5 or R&S®NRP-Z3/Z4)
R&S®FSL-K9
