I/Q modulation |
|
|
RF modulation bandwidth | with internal wideband baseband, “I/Q wideband” on |
|
| 1 MHz ≤ f ≤ 300 MHz | ±32% of carrier frequency |
| 300 MHz ≤ f ≤ 2.5 GHz | ±40% of carrier frequency |
| f > 2.5 GHz | ±1 GHz |
| with internal standard baseband, “I/Q wideband” |
|
| 1 MHz ≤ f ≤ 250 MHz | ±32% of carrier frequency |
| f > 250 MHz | ±80 MHz |
Modulation frequency response in specified RF modulation bandwidth | with internal baseband, “I/Q wideband” on | < 1.0 dB, < 0.4 dB (meas.) |
EVM | 5G NR | 100 MHz, 64QAM, f = 3.4 GHz 0.1% (meas.) |
| IEEE802.11be | 320 MHz, f = 7 GHz |
Wideband baseband generator | R&S®SMW-B9 option, up to two wideband baseband generators can be installed |
|
Signal bandwidth | standard | 500 MHz |
| with R&S®SMW-K525 and -K527 options | 1 GHz |
| with R&S®SMW-K525 and -K527 options | 2 GHz |
ARB memory depth | standard | 256 Msample |
| with R&S®SMW-K515 option | 2 Gsample |
Frequency offset | standard | −250 MHz to +250 MHz |
| with R&S®SMW-K525 option | −500 MHz to +500 MHz |
| with R&S®SMW-K525 and -K527 options | −1000 MHz to +1000 MHz |
Standard baseband generator | R&S®SMW-B10 option, up to two baseband generators can be installed |
|
Signal bandwidth | standard | 120 MHz |
| with R&S®SMW-K522 option | 160 MHz |
ARB memory depth | standard | 64 Msample |
| with R&S®SMW-K511 option | 512 Msample |
| with R&S®SMW-K511 and -K512 options | 1 Gsample |
Frequency offset | standard | −60 MHz to +60 MHz |
| with R&S®SMW-K522 option | −80 MHz to +80 MHz |
Digital standards | Supported standards and modulation systems | 5G NR Releases 15 to 17, LTE Releases 8 to 15, NB-IoT, eMTC, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, WLAN IEEE802.11a/b/g/n/p/ac/ax/ad/be, GNSS, AWGN and more |
Fading and MIMO | Fading simulator | R&S®SMW-B14/-B15 option, up to four fading modules can be installed |
Fading bandwidth | depending on options | max. 800 MHz |
Fading channels | depending on options | max. 64 |
MIMO fading scenarios | depending on options | 2x2, 3x3, 4x4, 8x4, 4x8, 8x8, 2x2x2, 2x4x4, 4x2x2 and more |
Fading modes | depending on options | multipath, moving delay, birth-death, high speed train, two-channel interferer |
Fading profiles | depending on options | Rayleigh, Rice, pure Doppler, static path, Gaussian, customized and more |

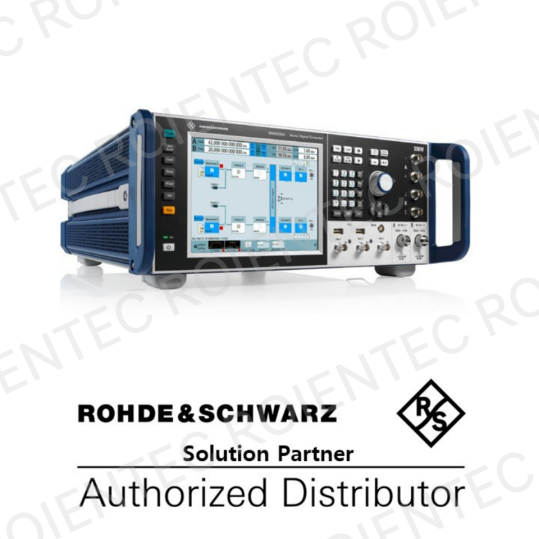

SMW200A
SPECIFICATIONS IN BRIEF
Frequency
Frequency range, RF path A
R&S®SMW-B1003
100 kHz to 3 GHz
R&S®SMW-B1006
100 kHz to 6 GHz
R&S®SMW-B1007
100 kHz to 7.5 GHz
R&S®SMW-B1012
100 kHz to 12.75 GHz
R&S®SMW-B1020
100 kHz to 20 GHz
R&S®SMW-B1031
100 kHz to 31.8 GHz
R&S®SMW-B1040/-B1040N
100 kHz to 40 GHz
R&S®SMW-B1044/-B1044N/-B10440
100 kHz to 44 GHz
R&S®SMW-B1056N/B1056O
100 kHz to 56 GHz
R&S®SMW-B1067/-B1067N/-B1067O
100 kHz to 67 GHz
Frequency range, RF path B (optional, see R&S®SMW200A specifications for possible RF path configurations)
R&S®SMW-B2003
100 kHz to 3 GHz
R&S®SMW-B2006
100 kHz to 6 GHz
R&S®SMW-B2007
100 kHz to 7.5 GHz
R&S®SMW-B2012
100 kHz to 12.75 GHz
R&S®SMW-B2020
100 kHz to 20 GHz
R&S®SMW-B2031
100 kHz to 31.8 GHz
R&S®SMW-B2044/-B2044N/-B20440
100 kHz to 44 GHz
Level
Specified level range
3 MHz ≤ f ≤ 20 GHz
−120 dBm to +18 dBm (PEP)
R&S®SMW-B1031/-B1040/-B1040N/-B1044(N/O)/-B1044N(N/O)/-B2020/-B2031/-B2044(N/O)
−120 dBm to +11 dBm/+18 dBm (PEP), depending on RF
R&S®SMW-B1056(N/O)/-B1067(N/O)
−120 dBm to +8 dBm/+15 dBm (PEP), depending on RF
Spectral purity
Harmonics
level < 10 dBm, CW
< −30 dBc
R&S®SMW-B1020/-B1031/-B1040/-B1040N/-B1044(N/O)/-B2020/-B2031/-B2044(N/O)
< −55 dBc
R&S®SMW-B1056(N/O)/-B1067(N/O), f > 3.5 GHz, level < 6 dBm
< −55 dBc
Nonharmonics
CW or vector modulation with full-scale DC input, level > −10 dBm, carrier offset > 10 kHz, 200 MHz < f ≤ 1500 MHz
< −85 dBc
standard
< −85 dBc
SSB phase noise
CW, carrier offset = 10 kHz, f = 1 GHz
standard
< −134 dBc
with R&S®SMW-B709/B719 option
< −139 dBc
with R&S®SMW-B711/B721 option
< −144 dBc, −150 dBc (typ.)
CW, carrier offset = 10 kHz, f = 10 GHz
standard
< −119 dBc
with R&S®SMW-B709/B719 option
< −124 dBc
with R&S®SMW-B711/B721 option
< −130 dBc (typ.)
Analog modulation
Supported analog modulation modes
depending on options
AM, FM, φM, pulse
I/Q modulation
RF modulation bandwidth
with internal wideband baseband, “I/Q wideband” on
1 MHz ≤ f ≤ 300 MHz
±32% of carrier frequency
300 MHz ≤ f ≤ 2.5 GHz
±40% of carrier frequency
f > 2.5 GHz
±1 GHz
with internal standard baseband, “I/Q wideband”
1 MHz ≤ f ≤ 250 MHz
±32% of carrier frequency
f > 250 MHz
±80 MHz
Modulation frequency response in specified RF modulation bandwidth
with internal baseband, “I/Q wideband” on
< 1.0 dB, < 0.4 dB (meas.)
EVM
5G NR
100 MHz, 64QAM, f = 3.4 GHz 0.1% (meas.)
IEEE802.11be
320 MHz, f = 7 GHz
Wideband baseband generator
R&S®SMW-B9 option, up to two wideband baseband generators can be installed
Signal bandwidth
standard
500 MHz
with R&S®SMW-K525 and -K527 options
1 GHz
with R&S®SMW-K525 and -K527 options
2 GHz
ARB memory depth
standard
256 Msample
with R&S®SMW-K515 option
2 Gsample
Frequency offset
standard
−250 MHz to +250 MHz
with R&S®SMW-K525 option
−500 MHz to +500 MHz
with R&S®SMW-K525 and -K527 options
−1000 MHz to +1000 MHz
Standard baseband generator
R&S®SMW-B10 option, up to two baseband generators can be installed
Signal bandwidth
standard
120 MHz
with R&S®SMW-K522 option
160 MHz
ARB memory depth
standard
64 Msample
with R&S®SMW-K511 option
512 Msample
with R&S®SMW-K511 and -K512 options
1 Gsample
Frequency offset
standard
−60 MHz to +60 MHz
with R&S®SMW-K522 option
−80 MHz to +80 MHz
Digital standards
Supported standards and modulation systems
5G NR Releases 15 to 17, LTE Releases 8 to 15, NB-IoT, eMTC, 3GPP FDD/HSPA/HSPA+, GSM/EDGE/EDGE Evolution, WLAN IEEE802.11a/b/g/n/p/ac/ax/ad/be, GNSS, AWGN and more
Fading and MIMO
Fading simulator
R&S®SMW-B14/-B15 option, up to four fading modules can be installed
Fading bandwidth
depending on options
max. 800 MHz
Fading channels
depending on options
max. 64
MIMO fading scenarios
depending on options
2x2, 3x3, 4x4, 8x4, 4x8, 8x8, 2x2x2, 2x4x4, 4x2x2 and more
Fading modes
depending on options
multipath, moving delay, birth-death, high speed train, two-channel interferer
Fading profiles
depending on options
Rayleigh, Rice, pure Doppler, static path, Gaussian, customized and more
