A generator with lower phase noise adds less unwanted noise to the DUT, showing the DUT’s true performance. Test the device, not the generator.
Output power at 6 GHz
+26 dBm
A higher power level allows a wider testing range. Extra power compensates for fixtures and cables between the generator and test point, removing the need for external amplifiers.
Dimensions (W × H × D)
344 mm × 108 mm × 372 mm
A smaller footprint saves space on a crowded workbench.

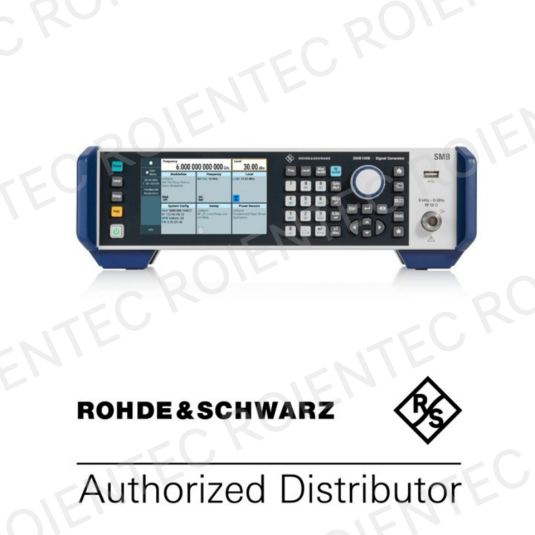

SMB100B RF Signal Generator
Model overview
Model (frequency range)
Configuration
Maximum output power (10 MHz < f ≤ 6 GHz)
Phase noise (1 GHz, at 20 kHz)
Optional analog modulation
1 GHz
R&S®SMB100B
R&S®SMB100B, R&S®SMBB-B101
+18 dBm
< −126 dBc
AM, FM, phase, pulse
R&S®SMB100B (ultra high output power)
R&S®SMBB-B101, R&S®SMBB-K31, R&S®SMBB-B32
+26 dBm
< −126 dBc
AM, FM, phase, pulse
3 GHz
R&S®SMB100B
R&S®SMB100B, R&S®SMBB-B103
+18 dBm
< −126 dBc
AM, FM, phase, pulse
R&S®SMB100B (ultra high output power)
R&S®SMBB-B103, R&S®SMBB-K31, R&S®SMBB-B32
+26 dBm
< −126 dBc
AM, FM, phase, pulse
6 GHz
R&S®SMB100B
R&S®SMB100B, R&S®SMBB-B106
+18 dBm
< −126 dBc
AM, FM, phase, pulse
R&S®SMB100B (ultra high output power)
R&S®SMBB-B106, R&S®SMBB-K31, R&S®SMBB-B32
+26 dBm
< −126 dBc
AM, FM, phase, pulse
Important facts
Specification
R&S®SMB100B
Why this is important
Frequency range
8 kHz to 1 / 3 / 6 GHz
To cover the frequency range of the DUT.
Phase noise (f = 1 GHz, 20 kHz offset)
< −126 dBc
A generator with lower phase noise adds less unwanted noise to the DUT, showing the DUT’s true performance. Test the device, not the generator.
Output power at 6 GHz
+26 dBm
A higher power level allows a wider testing range. Extra power compensates for fixtures and cables between the generator and test point, removing the need for external amplifiers.
Dimensions (W × H × D)
344 mm × 108 mm × 372 mm
A smaller footprint saves space on a crowded workbench.
Weight
≤ 6.8 kg
Scope of delivery
Recommended options / accessories
Reference oscillator options
Type
OCXO reference oscillator¹
R&S®SMBB-B1
OCXO reference oscillator, high performance¹
R&S®SMBB-B1H
High performance pulse modulator
R&S®SMB-K22
Pulse generator
R&S®SMB-K23
Pulse train
R&S®SMB-K27
