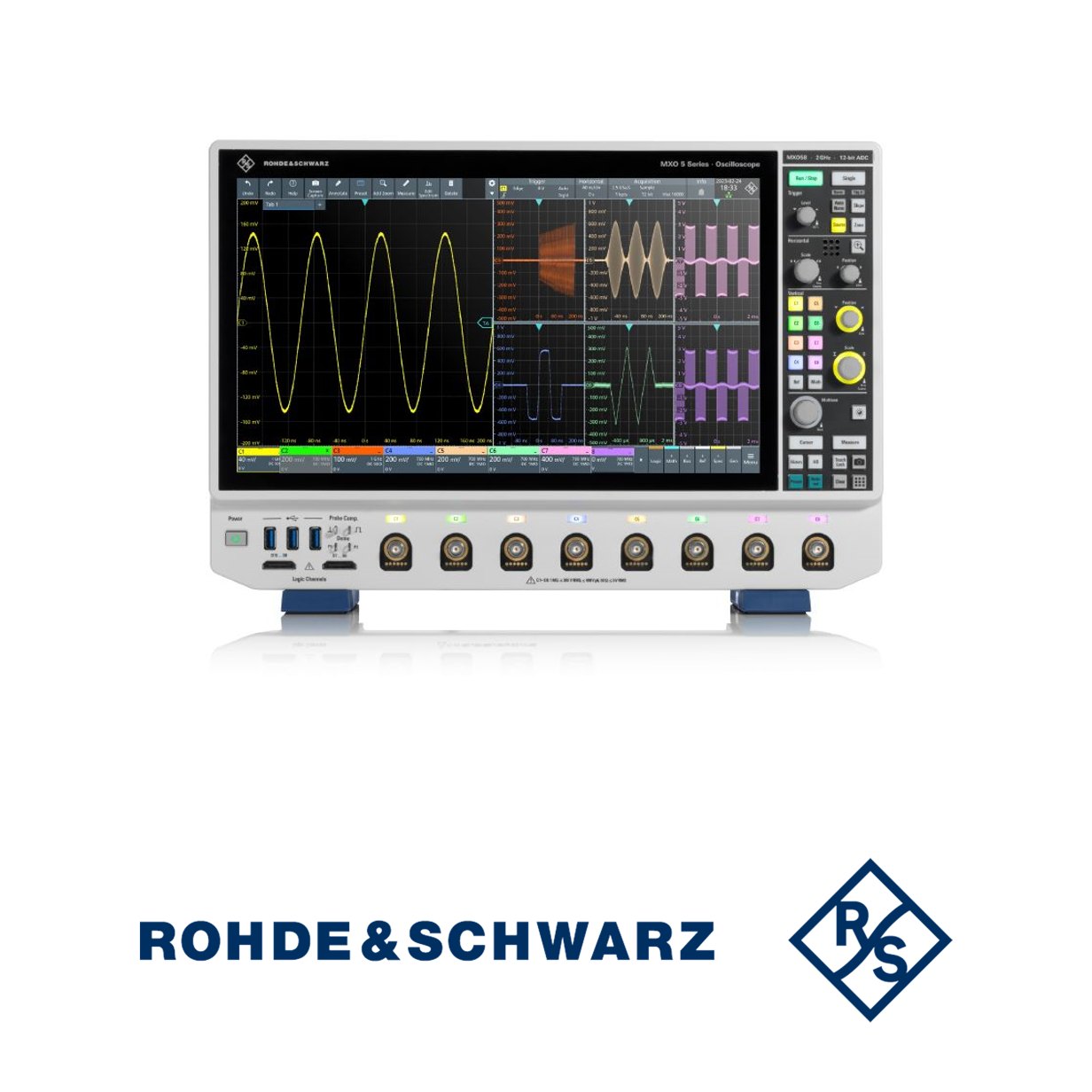

MXO 5 Series Oscilloscope

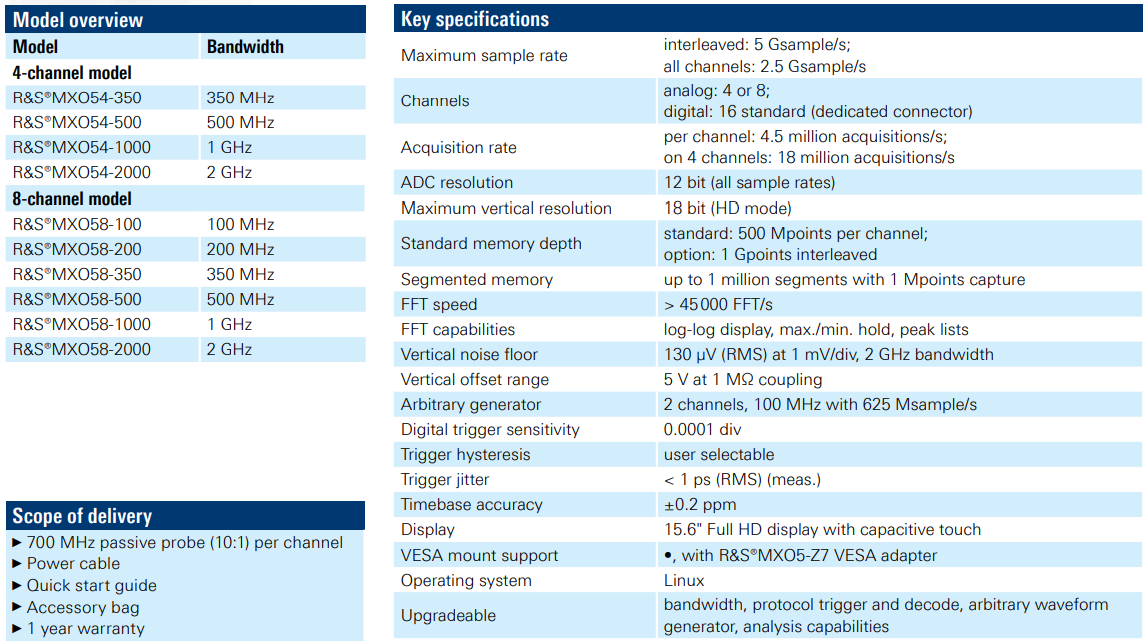

Model overview
Model
Bandwidth
4-channel model
R&S®MXO54-350
350 MHz
R&S®MXO54-500
500 MHz
R&S®MXO54-1000
1 GHz
R&S®MXO54-2000
2 GHz
8-channel model
R&S®MXO58-100
100 MHz
R&S®MXO58-200
200 MHz
R&S®MXO58-350
R&S®MXO58-500
R&S®MXO58-1000
R&S®MXO58-2000
Key specifications
Specification
Details
Maximum sample rate
interleaved: 5 Gsample/s; all channels: 2.5 Gsample/s
Channels
analog: 4 or 8; digital: 16 standard (dedicated connector)
Acquisition rate
per channel: 4.5 million acquisitions/s; on 4 channels: 18 million acquisitions/s
ADC resolution
12 bit (all sample rates)
Maximum vertical resolution
18 bit (HD mode)
Standard memory depth
standard: 500 Mpoints per channel; option: 1 Gpoints interleaved
Segmented memory
up to 1 million segments with 1 Mpoints capture
FFT speed
> 45,000 FFT/s
FFT capabilities
log–log display, max./min. hold, peak lists
Vertical noise floor
130 µV (RMS) at 1 mV/div, 2 GHz bandwidth
Vertical offset range
5 V at 1 MΩ coupling
Arbitrary generator
2 channels, 100 MHz with 625 Msample/s
Digital trigger sensitivity
0.0001 div
Trigger hysteresis
user selectable
Trigger jitter
< 1 ps (RMS) (meas.)
Timebase accuracy
±0.2 ppm
Display
15.6" Full HD display with capacitive touch
VESA mount support
•, with R&S®MXO5-Z7 VESA adapter
Operating system
Linux
Upgradeable
bandwidth, protocol trigger and decode, arbitrary waveform generator, analysis capabilities
Scope of delivery

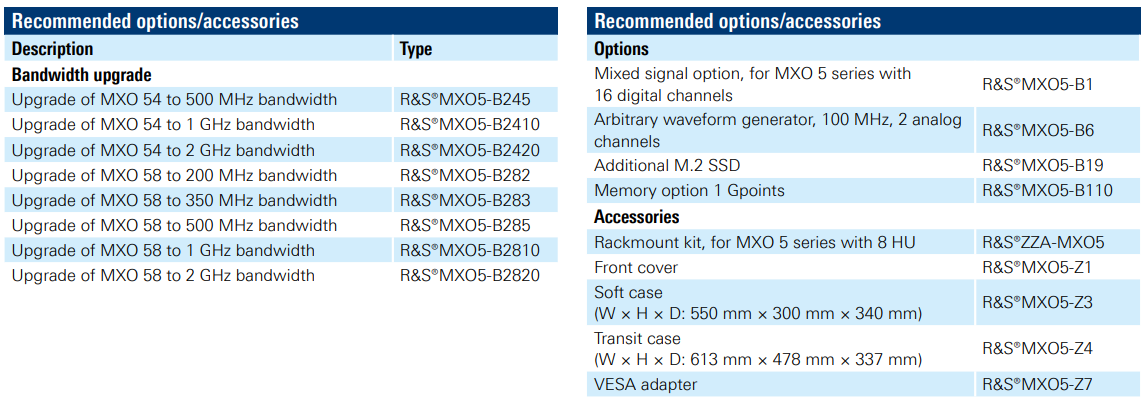

Recommended options / accessories
Description
Type
Bandwidth upgrade
Upgrade of MXO 54 to 500 MHz bandwidth
R&S®MXO5-B245
Upgrade of MXO 54 to 1 GHz bandwidth
R&S®MXO5-B2410
Upgrade of MXO 54 to 2 GHz bandwidth
R&S®MXO5-B2420
Upgrade of MXO 58 to 200 MHz bandwidth
R&S®MXO5-B282
Upgrade of MXO 58 to 350 MHz bandwidth
R&S®MXO5-B283
Upgrade of MXO 58 to 500 MHz bandwidth
R&S®MXO5-B285
Upgrade of MXO 58 to 1 GHz bandwidth
R&S®MXO5-B2810
Upgrade of MXO 58 to 2 GHz bandwidth
R&S®MXO5-B2820
Options
Mixed signal option, for MXO 5 series with 16 digital channels
R&S®MXO5-B1
Arbitrary waveform generator, 100 MHz, 2 analog channels
R&S®MXO5-B6
Additional M.2 SSD
R&S®MXO5-B19
Memory option 1 Gpoints
R&S®MXO5-B110
Accessories
Rackmount kit, for MXO 5 series with 8 HU
R&S®ZZA-MXO5
Front cover
R&S®MXO5-Z1
Soft case (W × H × D: 550 mm × 300 mm × 340 mm)
R&S®MXO5-Z3
Transit case (W × H × D: 613 mm × 478 mm × 337 mm)
R&S®MXO5-Z4
VESA adapter
R&S®MXO5-Z7
