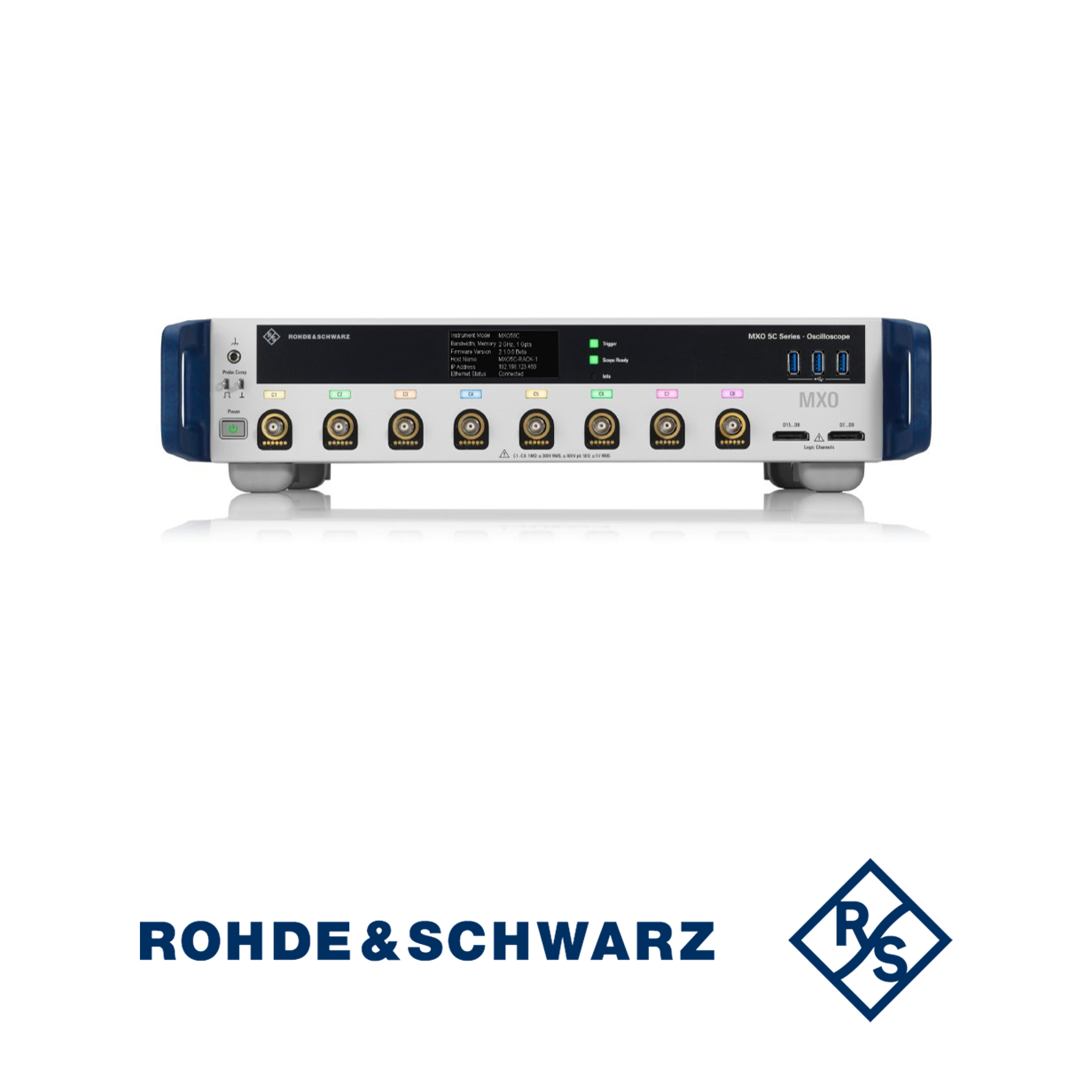

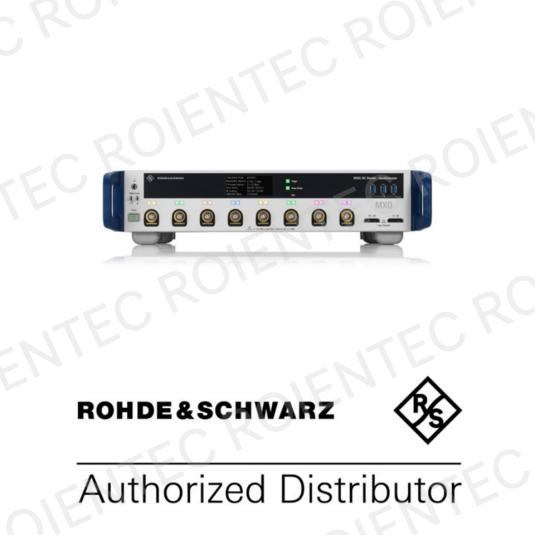

MXO 5C Series Oscilloscope
Model overview
Model
Bandwidth
4-channel model
R&S®MXO5C-43
350 MHz
R&S®MXO5C-45
500 MHz
R&S®MXO5C-410
1 GHz
R&S®MXO5C-420
2 GHz
8-channel model
R&S®MXO5C-81
100 MHz
R&S®MXO5C-82
200 MHz
R&S®MXO5C-83
R&S®MXO5C-85
R&S®MXO5C-810
R&S®MXO5C-820

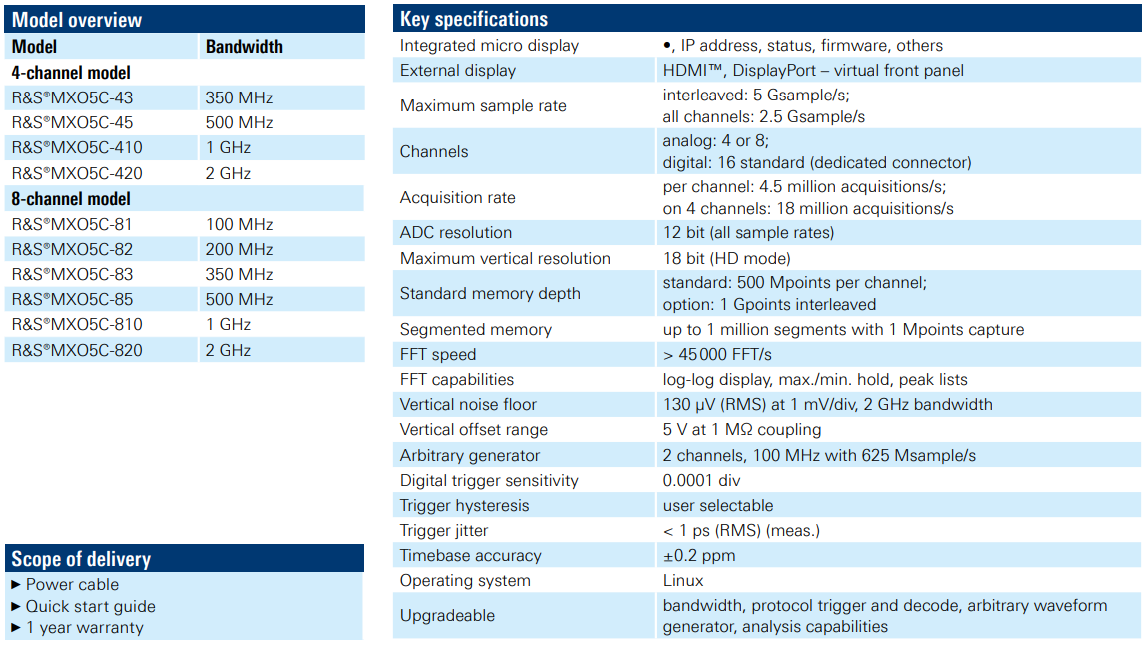

Key specifications
Specification
Details
Integrated micro display
•, IP address, status, firmware, others
External display
HDMI™, DisplayPort – virtual front panel
Maximum sample rate
interleaved: 5 Gsample/s;
all channels: 2.5 Gsample/s
Channels
analog: 4 or 8;
digital: 16 standard (dedicated connector)
Acquisition rate
per channel: 4.5 million acquisitions/s
on 4 channels: 18 million acquisitions/s
ADC resolution
12 bit (all sample rates)
Maximum vertical resolution
18 bit (HD mode)
Standard memory depth
standard: 500 Mpoints per channel;
option: 1 Gpoints interleaved
Segmented memory
up to 1 million segments with 1 Mpoints capture
FFT speed
> 45,000 FFT/s
FFT capabilities
log–log display, max./min. hold, peak lists
Vertical noise floor
130 µV (RMS) at 1 mV/div, 2 GHz bandwidth
Vertical offset range
5 V at 1 MΩ coupling
Arbitrary generator
2 channels, 100 MHz with 625 Msample/s
Digital trigger sensitivity
0.0001 div
Trigger hysteresis
user selectable
Trigger jitter
< 1 ps (RMS) (meas.)
Timebase accuracy
±0.2 ppm
Operating system
Linux
Upgradeable
bandwidth, protocol trigger and decode, arbitrary waveform generator, analysis capabilities
Scope of delivery

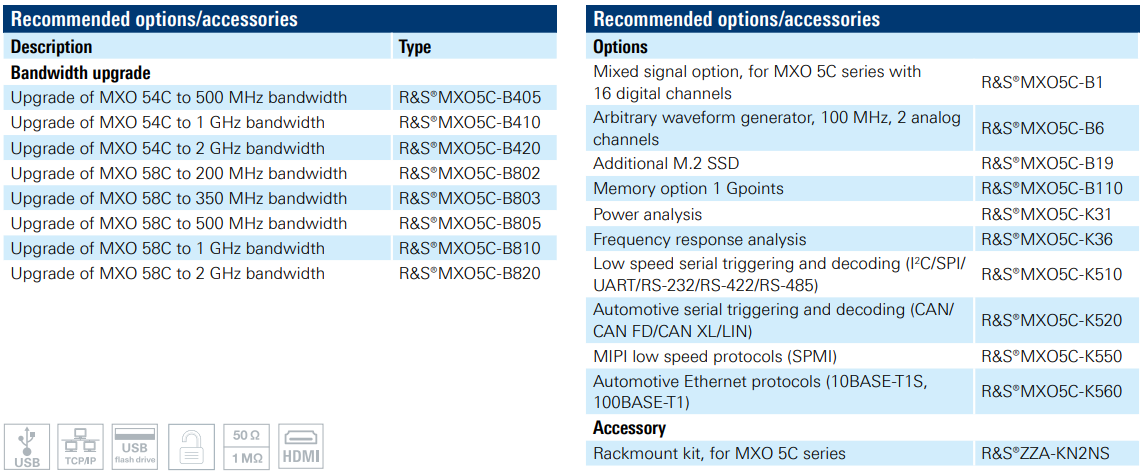

Recommended options / accessories
Description
Type
Bandwidth upgrade
Upgrade of MXO 54C to 500 MHz bandwidth
R&S®MXO5C-B405
Upgrade of MXO 54C to 1 GHz bandwidth
R&S®MXO5C-B410
Upgrade of MXO 54C to 2 GHz bandwidth
R&S®MXO5C-B420
Upgrade of MXO 58C to 200 MHz bandwidth
R&S®MXO5C-B802
Upgrade of MXO 58C to 350 MHz bandwidth
R&S®MXO5C-B803
Upgrade of MXO 58C to 500 MHz bandwidth
R&S®MXO5C-B805
Upgrade of MXO 58C to 1 GHz bandwidth
R&S®MXO5C-B810
Upgrade of MXO 58C to 2 GHz bandwidth
R&S®MXO5C-B820
Options
Mixed signal option, for MXO 5C series with 16 digital channels
R&S®MXO5C-B1
Arbitrary waveform generator, 100 MHz, 2 analog channels
R&S®MXO5C-B6
Additional M.2 SSD
R&S®MXO5C-B19
Memory option 1 Gpoints
R&S®MXO5C-B110
Power analysis
R&S®MXO5C-K31
Frequency response analysis
R&S®MXO5C-K36
Low speed serial triggering and decoding (I²C/SPI/UART/RS-232/RS-422/RS-485)
R&S®MXO5C-K510
Automotive serial triggering and decoding (CAN/CAN FD/CAN XL/LIN)
R&S®MXO5C-K520
MIPI low speed protocols (SPMI)
R&S®MXO5C-K550
Automotive Ethernet protocols (10BASE-T1S, 100BASE-T1)
R&S®MXO5C-K560
Accessory
Rackmount kit, for MXO 5C series
R&S®ZZA-KN2NS
