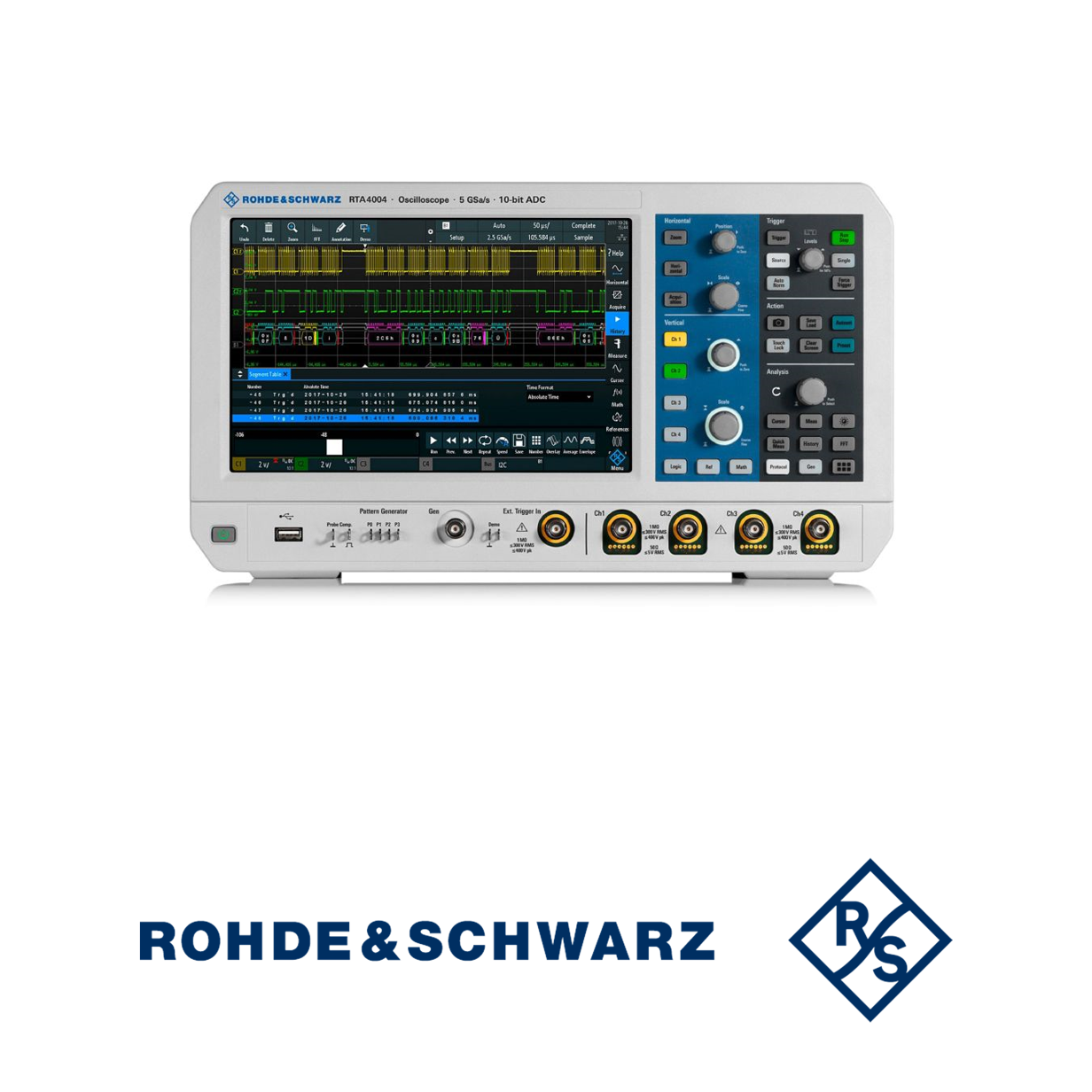

RTA4000 Oscilloscope

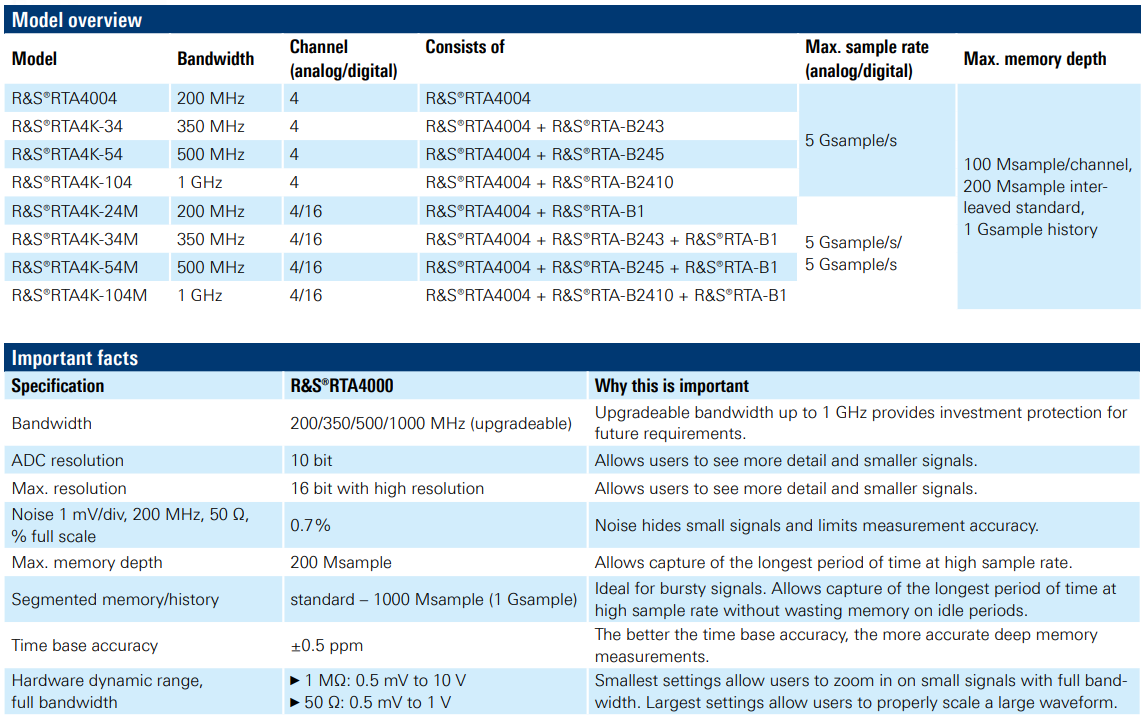

Model overview
Model
Bandwidth
Channel (analog/digital)
Consists of
Max. sample rate (analog/digital)
Max. memory depth
R&S®RTA4004
200 MHz
4
5 Gsample/s
100 Msample/channel, 200 Msample interleaved standard, 1 Gsample history
R&S®RTA4K-34
350 MHz
R&S®RTA4004 + R&S®RTA-B243
R&S®RTA4K-54
500 MHz
R&S®RTA4004 + R&S®RTA-B245
R&S®RTA4K-104
1 GHz
R&S®RTA4004 + R&S®RTA-B2410
R&S®RTA4K-24M
4/16
R&S®RTA4004 + R&S®RTA-B1
R&S®RTA4K-34M
R&S®RTA4004 + R&S®RTA-B243 + R&S®RTA-B1
R&S®RTA4K-54M
R&S®RTA4004 + R&S®RTA-B245 + R&S®RTA-B1
R&S®RTA4K-104M
R&S®RTA4004 + R&S®RTA-B2410 + R&S®RTA-B1
Important facts
Specification
R&S®RTA4000
Why this is important
200 / 350 / 500 / 1000 MHz (upgradeable)
Upgradeable bandwidth up to 1 GHz provides investment protection for future requirements.
ADC resolution
10 bit
Allows users to see more detail and smaller signals.
Max. resolution
16 bit with high resolution
Noise 1 mV/div, 200 MHz, 50 Ω, % full scale
0.7%
Noise hides small signals and limits measurement accuracy.
200 Msample
Allows capture of the longest period of time at high sample rate.
Segmented memory/history
standard – 1000 Msample (1 Gsample)
Ideal for bursty signals. Allows capture of the longest period of time at high sample rate without wasting memory on idle periods.
Time base accuracy
±0.5 ppm
The better the time base accuracy, the more accurate deep memory measurements.
Hardware dynamic range, full bandwidth
► 1 MΩ: 0.5 mV to 10 V
► 50 Ω: 0.5 mV to 1 V
Smallest settings allow users to zoom in on small signals with full bandwidth. Largest settings allow users to properly scale a large waveform.

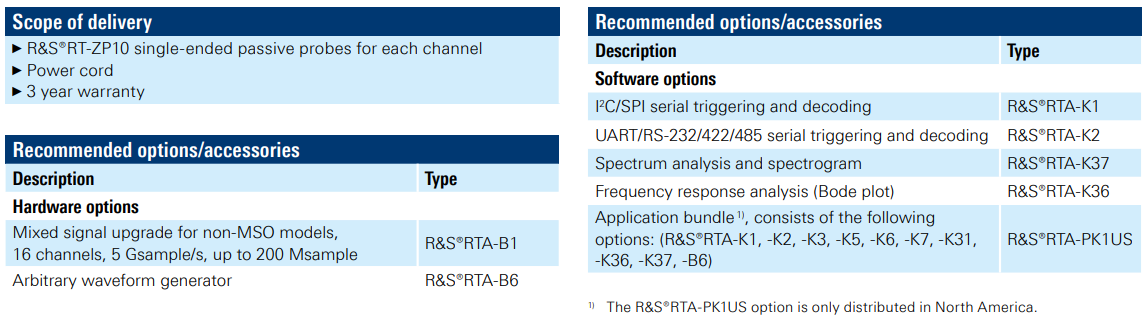

Scope of delivery
Recommended options / accessories
Description
Type
Hardware options
Mixed signal upgrade for non-MSO models, 16 channels, 5 Gsample/s, up to 200 Msample
R&S®RTA-B1
Arbitrary waveform generator
R&S®RTA-B6
Software options
I²C/SPI serial triggering and decoding
R&S®RTA-K1
UART/RS-232/422/485 serial triggering and decoding
R&S®RTA-K2
Spectrum analysis and spectrogram
R&S®RTA-K37
Frequency response analysis (Bode plot)
R&S®RTA-K36
Application bundle (consists of R&S®RTA-K1, -K2, -K3, -K5, -K6, -K7, -K31, -K36, -K37, -B6)
R&S®RTA-PK1US (only distributed in North America)
