Oscilloscope

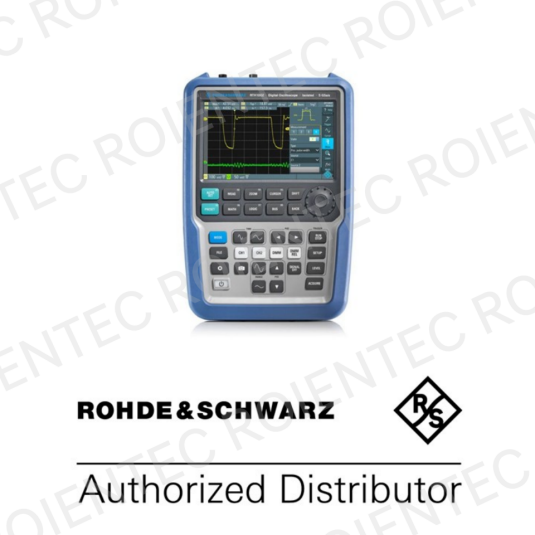

RTH Handheld Oscilloscope
Model overview
Model
Bandwidth
Channel (analog/digital)
Sample rate (analog/digital)
Memory depth
Update rate
Vertical resolution
R&S®RTH1002
60 MHz
2
up to 500 kpoints, 50 Mpoints segmented memory
50 000 waveforms/s
up to 10 bit
R&S®RTH1012
100 MHz
R&S®RTH1022
200 MHz
2/8 (optional)
5 Gsample/s / 1.25 Gsample/s
R&S®RTH1032
350 MHz
R&S®RTH1052
500 MHz
R&S®RTH1004
4
R&S®RTH1014
R&S®RTH1024
4/8 (optional)
R&S®RTH1034
R&S®RTH1054
Important facts
Specification
R&S®Scope Rider RTH
Why this is important
The faster the update rate, the faster users can find infrequent events.
Allows capture of the longest period of time at high sample rate.
Integration
DMM, MSO, protocol analyzer, data logger
Allows debugging of low-speed serial devices and mixed signal designs.
ADC resolution
10 bit
Allows users to see more detail and smaller signals.
Display
7", 800 × 480, touchscreen
Makes it easier to operate and see information on the display.
Scope of delivery
Recommended options / accessories
Description
Type
Hardware options (plug-in)
Mixed signal option, 250 MHz, 8 digital channels
R&S®RTH-B1
Software options
I²C/SPI serial decoding
R&S®RTH-K1
UART/RS-232/RS-422/RS-485 serial decoding
R&S®RTH-K2
CAN/LIN serial triggering and decoding
R&S®RTH-K3
Spectrum analysis
R&S®RTH-K18
Advanced triggering
R&S®RTH-K19
Frequency counter
R&S®RTH-K33
Harmonics analysis
R&S®RTH-K34
User scripting
R&S®RTH-K38
Wireless LAN
R&S®RTH-K200 / R&S®RTH-K200US
Web interface remote control
R&S®RTH-K201
Probes
Passive probe, 500 MHz, 10:1, isolated, 600 V CAT IV, 1000 V CAT III
R&S®RT-ZI10
Passive probe, 500 MHz, 100:1, isolated, 600 V CAT IV, 1000 V CAT III
R&S®RT-ZI11
Current probe, 100 kHz, 30 A, AC/DC
R&S®RT-ZC03
