Oscilloscope

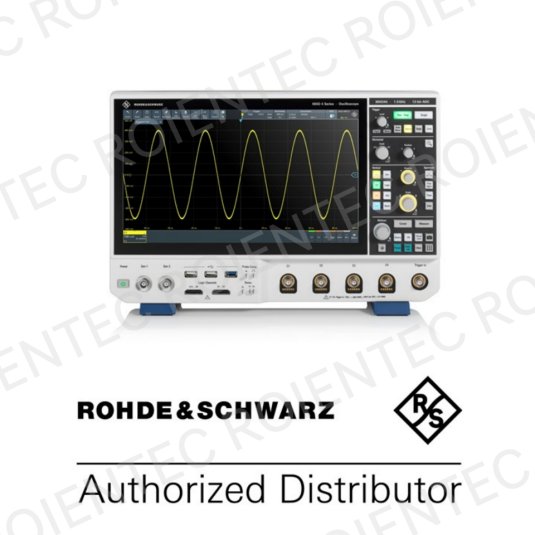

MXO4 Series Oscilloscope
Model overview
Model
Bandwidth
Channel
Sample rate
Maximum memory depth
Optional MSO
R&S®MXO44-242
200 MHz
4
5 Gsample/s
400 Mpoints per channel (optional 800 Mpoints)
16 digital channels
R&S®MXO44-243
350 MHz
R&S®MXO44-245
500 MHz
R&S®MXO44-2410
1 GHz
R&S®MXO44-2415
1.5 GHz
Important facts
Specification
MXO 4
Why this is important
Capture rate
> 4.5 million waveforms/s
Find signal anomalies quickly.
ADC resolution
12 bit (18-bit architecture with HD mode)
See your signals accurately.
Memory depth
standard: 400 Mpoints per channel; option: 800 Mpoints interleaved
Capture more time.
Trigger
Industry's most sensitive trigger: 0.0001 vertical division
Isolate events with more precision.
Scope of delivery
Recommended options / accessories
Description
Type
Hardware options
Mixed signal option (MSO) with 16 digital channels
R&S®MXO4-B1
Arbitrary waveform generator, 100 MHz, 2 channels
R&S®MXO4-B6
Memory upgrade to 800 Mpoints on 2 channels
R&S®MXO4-B108
Software options
Power analysis
R&S®MXO4-K31
Frequency response analysis
R&S®MXO4-K36
Low speed serial triggering and decoding (I²C/SPI/UART/RS-232/RS-422/RS-485)
R&S®MXO4-K510
Automotive serial triggering and decoding (CAN/CAN FD/CAN XL/LIN)
R&S®MXO4-K520
MIPI low speed protocols (SPMI)
R&S®MXO4-K550
Automotive Ethernet protocols (10BASE-T1S)
R&S®MXO4-K560
Accessories
Front cover
R&S®MXO4-Z1
Soft case
R&S®MXO4-Z3
Transit case
R&S®MXO4-Z4
19" rackmount kit, 6 HU
R&S®ZZA-MXO4
