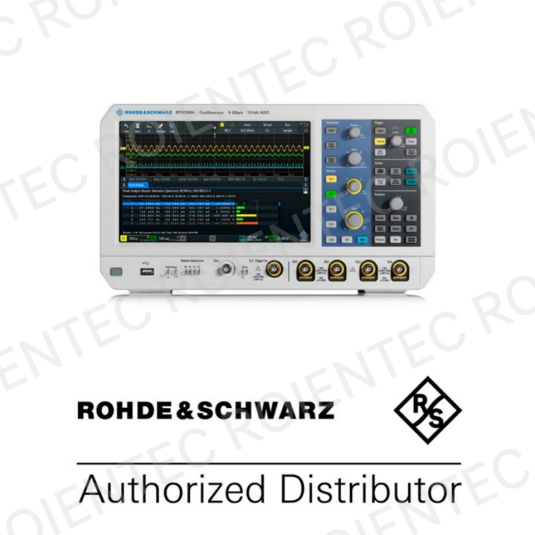

R&SRTM3000

R&S®RTM3002

100 MHz

2

R&S®RTM3002

R&S®RTM3004

100 MHz

4

R&S®RTM3004

R&S®RTM3K-22

200 MHz

2

R&S®RTM3002 + R&S®RTM-B222

5 Gsample/s

R&S®RTM3K-24

200 MHz

4

R&S®RTM3004 + R&S®RTM-B242

5 Gsample/s

R&S®RTM3K-32

350 MHz

2

R&S®RTM3002 + R&S®RTM-B223

5 Gsample/s

R&S®RTM3K-34

350 MHz

4

R&S®RTM3004 + R&S®RTM-B243

5 Gsample/s

R&S®RTM3K-52

500 MHz

2

R&S®RTM3002 + R&S®RTM-B225

5 Gsample/s

R&S®RTM3K-54

500 MHz

4

R&S®RTM3004 + R&S®RTM-B245

5 Gsample/s

R&S®RTM3K-102

1 GHz

2

R&S®RTM3002 + R&S®RTM-B2210

5 Gsample/s

R&S®RTM3K-104

1 GHz

4

R&S®RTM3004 + R&S®RTM-B2410

5 Gsample/s

40 Msample/channel, 80 Msample interleaved standard, 400 Msample (optional)

R&S®RTM3K-02M

100 MHz

2/16

R&S®RTM3002 + R&S®RTM-B1

R&S®RTM3K-04M

100 MHz

4/16

R&S®RTM3004 + R&S®RTM-B1

R&S®RTM3K-22M

200 MHz

2/16

R&S®RTM3002 + R&S®RTM-B222 + R&S®RTM-B1

5 Gsample/s

R&S®RTM3K-24M

200 MHz

4/16

R&S®RTM3004 + R&S®RTM-B242 + R&S®RTM-B1

5 Gsample/s

R&S®RTM3K-32M

350 MHz

2/16

R&S®RTM3002 + R&S®RTM-B223 + R&S®RTM-B1

5 Gsample/s

R&S®RTM3K-34M

350 MHz

4/16

R&S®RTM3004 + R&S®RTM-B243 + R&S®RTM-B1

5 Gsample/s

R&S®RTM3K-52M

500 MHz

2/16

R&S®RTM3002 + R&S®RTM-B225 + R&S®RTM-B1

5 Gsample/s

R&S®RTM3K-54M

500 MHz

4/16

R&S®RTM3004 + R&S®RTM-B245 + R&S®RTM-B1

5 Gsample/s

R&S®RTM3K-102M

1 GHz

2/16

R&S®RTM3002 + R&S®RTM-B2210 + R&S®RTM-B1

5 Gsample/s

R&S®RTM3K-104M

1 GHz

4/16

R&S®RTM3004 + R&S®RTM-B2410 + R&S®RTM-B1

5 Gsample/s

Bandwidth

100 / 200 / 350 / 500 / 1000 MHz (upgradeable)

Upgradeable bandwidth up to 1 GHz provides investment protection for future requirements.

ADC resolution

10 bit

Allows users to see more detail and smaller signals.

Maximum resolution

16 bit with high resolution or averaging

Allows users to see more detail and smaller signals.

Maximum memory depth

80 Msample

Allows capture of the longest period of time at high sample rate.

Segmented memory/history

optional, 400 Msample

Ideal for burst signals. Allows capture of the longest time periods at a high sample rate without wasting memory on idle periods.

Display

10.1", 1280 × 800, capacitive touchscreen

Makes it easier to operate and see information on the display.

Hardware dynamic range, full bandwidth

► 1 MΩ: 0.5 mV to 10V

► 50 Ω: 0.5 mV to 1 V

Smallest settings allow users to zoom in on small signals with full bandwidth. Largest settings allow users to properly scale a large waveform.

Boot time

approx. 10 s

Remote control makes updating and monitoring of the instrument easy.
