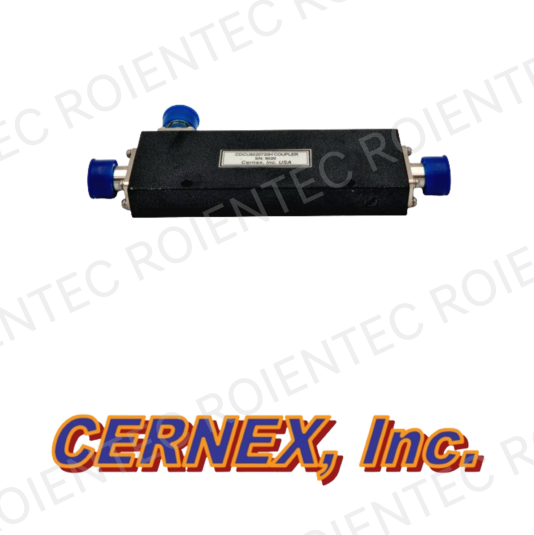

Directional Couplers
▶FEATURES
- Rugged construction
- High directivity
- Low insertion loss
- 0.5-110 GHz
▶APPLICATIONS:
- Test equipment
- Subsystems
- Power sampling
Cernex CDC Series multi-hole directional couplers are offered for the
frequency range of 0.5 to 110 GHz in seven waveguide bands.
The standard coupling levels are 3, 6, 10, 30 and 40 dB with full waveguide operational bandwidth.
The high directivity is achieved via low VSWR built-in termination.
The couplers are typically used for power sampling or frequency monitoring
with minimum signal loss on the main transmitting path.
The multi-hole couplers are especially used in the test setups where power reflection
measurement is required.
Directional Couplers SPECIFICATIONS
